Order #: P-39
Mfg #: P39

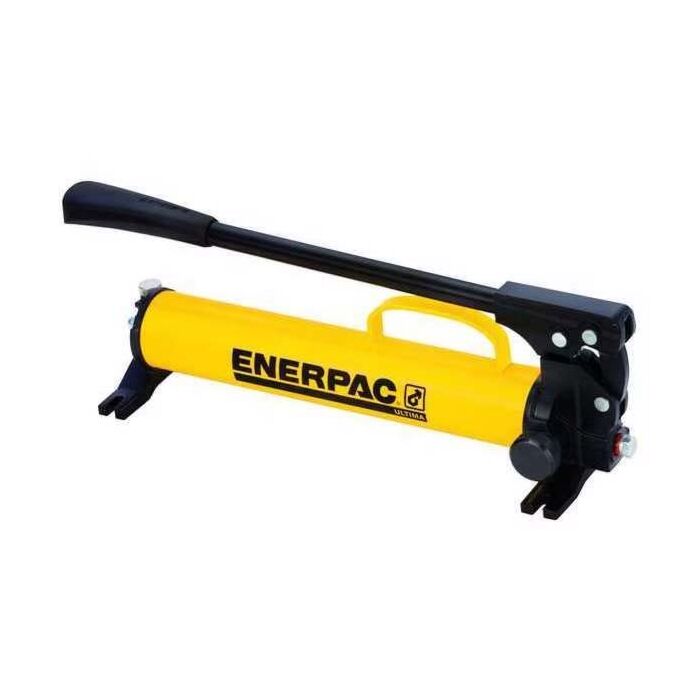

Enerpac P39 Hydraulic Hand Pump, Single Speed, SA, 10k PSI Max
Order #: P-39
Mfg #: P39
Product Highlights
The Enerpac P-39 high-pressure, single-speed hydraulic hand pump is for lifting, bolting, or applying pressure with a hydraulic cylinder (sold separately) in intermittent and non-repetitive construction, manufacturing, and maintenance and repair applications. It can advance and release a single-acting cylinder. This single-speed hand pump is for applications with a constantly applied load. An internal pressure relief valve helps protect the pump from overload. The vent-free reservoir helps prevent oil from spilling and is for use in non-vented applications. The pump can be operated in either the horizontal or vertical position. The steel body resists corrosion and wear, and the chrome-plated plunger and wiper system help extend the life of the pump. An ergonomically designed grip helps reduce operator hand fatigue, and the pump has a built-in carrying handle for transport. The pump has a 3/8" National Pipe Taper (NPT) threads port for connecting to a hose or gauge (sold separately).
- Reduced handle effort and ergonomic grip for less operator fatigue
- Vent free reservoir eliminates spills
- Quick grip handle allows for easy transport
- Integral reservoir over-pressurization protection
Maximum operating pressure | 10,000 psi |
Maximum oil displacement, per stroke | 0.15 cubic inch |
Usable oil capacity | 47 cubic ininches |
Piston stroke | 1.00 inch |
Maximum handle effort | 85 lb. |
Weight | 13.6 lb. |
Dimensions | 6.39 x 18.91 x 5.51 inches (H x W x D) |
