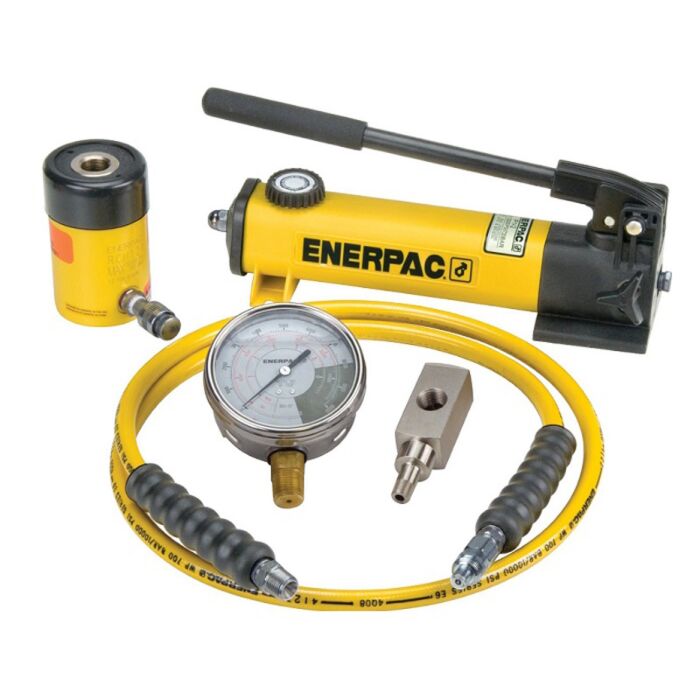

Enerpac 803491 30-Ton Cylinder with P392 Hand Pump
30-Ton Cylinder w/P392 Hand Pump
Order #: SCH-302H
Mfg #: 803491
Availability:
This item is no longer available. Please contact Transcat Customer Service
for assistance with alternative product suggestions to meet your exact needs.
Product Highlights
Optimum match of individual components
All sets are ready to use and include single-acting cylinder, two-speed pump, 6 foot safety hose, calibrated gauge with gauge adaptor
RCH-Series hollow cylinder for pushing and pulling
Set capacity
30 ton
Cylinder
2.5 inches stroke
7.03 inches collapsed height
Pump
200 pounds per square inch (psi) first stage maximum operating pressure
10,000 psi second stage maximum operating pressure
0.687 cubic inch per stroke first stage maximum oil displacement
0.151 cubic inch per stroke second stage maximum oil displacement
55 cubic inches usable oil capacity
0.5 inch piston stroke
93 lb. maximum handle effort
9 lb. weight
7 x 21 x 4.75 inches (H x W x D) dimensions
