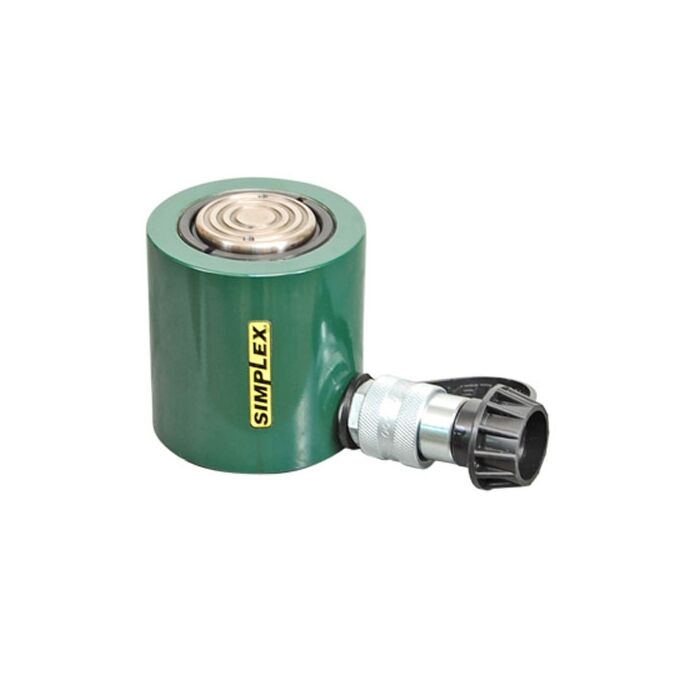

TK Simplex RLS302

Product Highlights

• Capacity : 30 ton
• Stroke : 2.44 inch
• Min. Height : 4.63 inch
• Max. Pressure : 10000 psi
• Oil Cap. Req. : 15.8 cu. in.
• Weight : 15 lbs.
• HD internal spring for retract assistance.
• Heat treated hardened load cap is standard.
• Stop ring for piston blow-out protection.
• Plated piston to resist scoring & corrosion.
• High flow couplers are plated to resist corrosion.
• Rod wiper protects inner cylinder from dirt.
