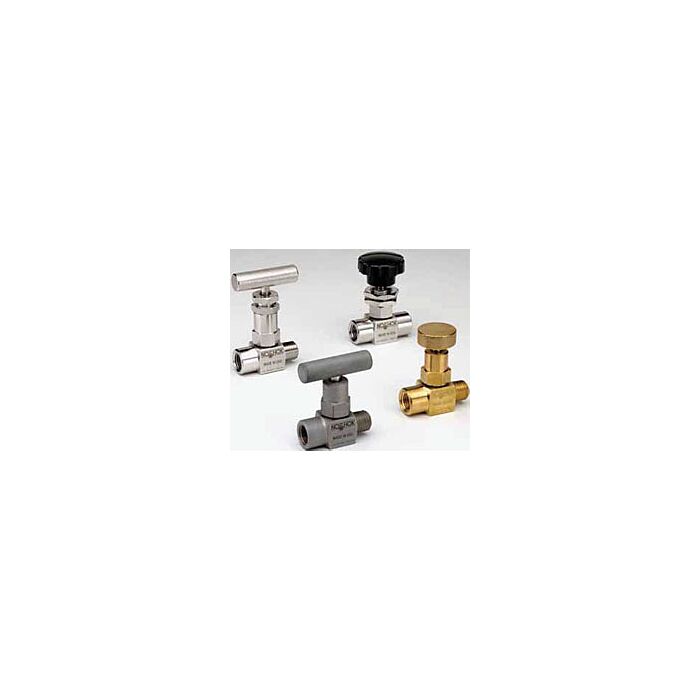

NOSHOK 152-MFC

Soft Tip Needle Valve,6000PSI 1/4"NPTF x 1/4"NPTM

Order #: 152-MFC-HL3

Mfg #: 152-MFC-HL3

Special Price $67.60 Regular Price $70.43

Availability: Call for availability

Compact size valve built for maximum durability and robust performance in the toughest applications
100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
Soft tip valves feature a patented Delrin® non-rotating soft tip stem, and a back-up metal-to-metal seal (U.S. Patent 6,820,857)
Maximum pressure of 6,000 psi
Available in zinc-nickel plated steel, electropolished stainless steel, and brass
FKM o-ring seal and PTFE back-up ring below the stem threads to protect from corrosion and galling; PTFE packing optional
All stems are 316 stainless steel
All stem threads are rolled for strength and ease of operation
Patented body-to-bonnet, metal-to-metal seal is designed to significantly increase the pressure range of the valve (U.S. Patent 7,758,014)

Noshok 150 Series Datasheet
