Meriam M2004
Smart Manometer, Absolute Non-Isolated, 0 - 15 PSIA

Order #: ZM2004-AN0015

Mfg #: ZM2004-AI0015

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,380.00

Meriam M2004

Smart Manometer, Absolute Non-Isolated, 0 - 15 PSIA

Order #: ZM2004-AN0015

Mfg #: ZM2004-AI0015

$2,380.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

Smart Manometer

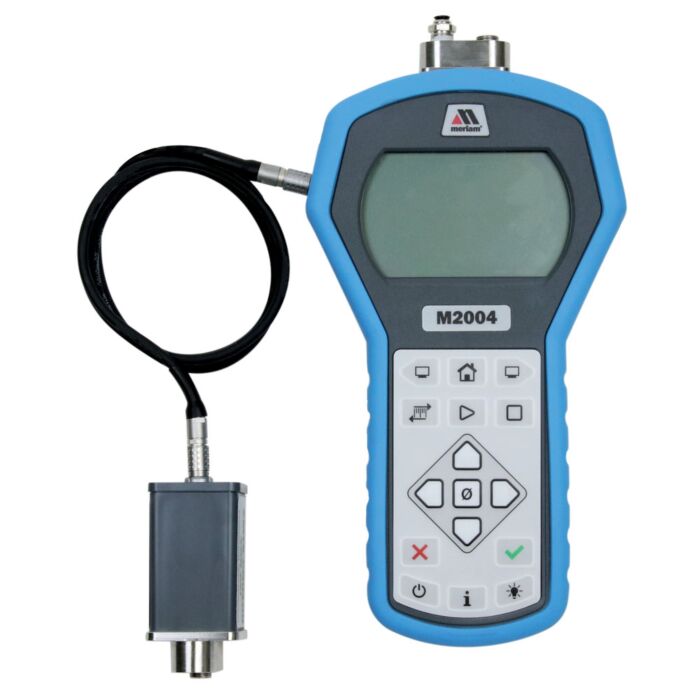

Meriam M2004 is a portable pressure instrument with flexible features to meet many of your everyday pressure measurement needs. This device features an easy and intuitive user interface with convenient pressure connections.

  • M2004 can use a second sensor with the MTS Series of Tethered Modules (Pressure & Temperature)
  • 316SS media isolated pressure sensors to suit a wide range of applications
  • Common features include damping to stabilize fluctuating pressure signals and data logging for easy measurement capture
  • Luer Lock Fittings included
  • This device ships with calibration certificate traceable to NIST

M2004 Features

  • Mobile data logging - no computer required while taking measurements
  • Computer configuration, calibration, and data logging application
  • One (1) fixed sensor and one (1) interchangeable accessory sensor (pressure or temperature)
  • Backlight
  • Battery life display ( 0 % to 100 %)
  • USB communication
  • Ranges available: -14.5 psi to 3000 psi
  • Min/Max pressure capture
  • RTD (Temperature) accessory sensor option
  • Compound, Absolute, and Differential pressure sensors
  • Protective blue boot
  • Optional pressure fittings and hand pump kit

Applications

  • Pressure Transmitter Calibration
  • Leak testing for low pressure gas systems
  • Pressure drop monitoring across filters
  • Monitoring vacuum on condensers and pumps
  • CPAP and BIPAP testing

Meriam Tethered Sensors (MTS)

Expand the capabilities of the M2004 by adding an MTS to measure a second pressure or a PT100 Class A RTD temperature. Choose any available pressure sensor type and range and connect your accessory MTS using the included 1 meter cable. All the functions of the M2004 are available to the MTS. Customized hard-carrying case included with the purchase of a M2004 and one or more MTS sensor options.
