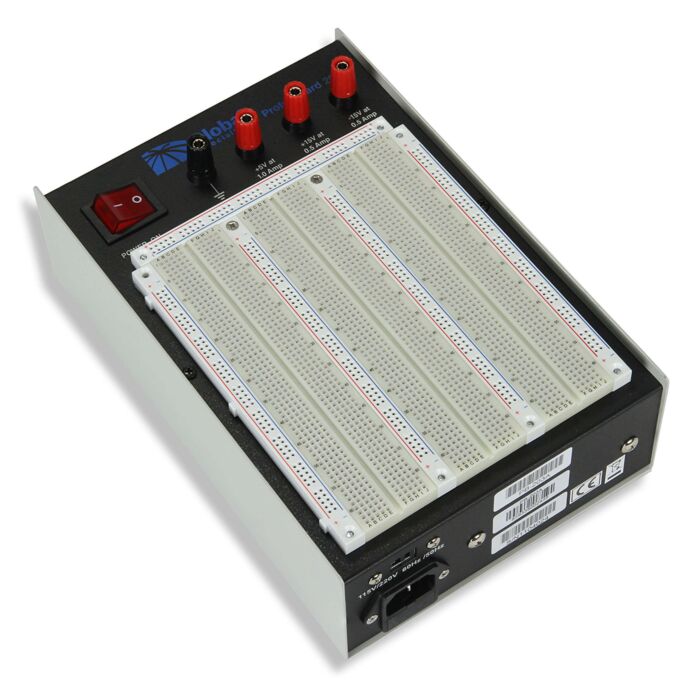

Cal Test Electronics PB-203A

Product Highlights

• Type Powered
• Tie-Points 2250
• Terminal Clips 450
• Breadboard Material ABS
• Spring Clip Material Nickel plated phosphor bronze
• Allowable Wire Diameter 0.4 - 0.7 mm
• Length 9.8 in (248mm)
• Width 6.6 in (168mm)
• Depth 8 mm (0.33 in)
• Weight 5.5 lbs
• Assembly NA
• Backplate Aluminum
• Binding Posts 4
• Current Capacity 1.5 A, 36 V
• 16-Pin IC Capacity 24
• Stand Rubber feet
• Warranty 3 years

The PB-203A is a durable powered breadboard capable of being used to design a multitude of analog, digital, logic and microcomputer circuits. The PB-203A's on-board power supply eliminates the need for an external supply, adding more versatility to circuit design and experimentation. Due to its ample sized breadboarding area, the PB-203A is ideally suited for virtually any type of breadboarding circuitry, from TTL, CMOS and ECL, to op-amps, audio, comparators, video amps, microprocessor components, phase locks and more.
