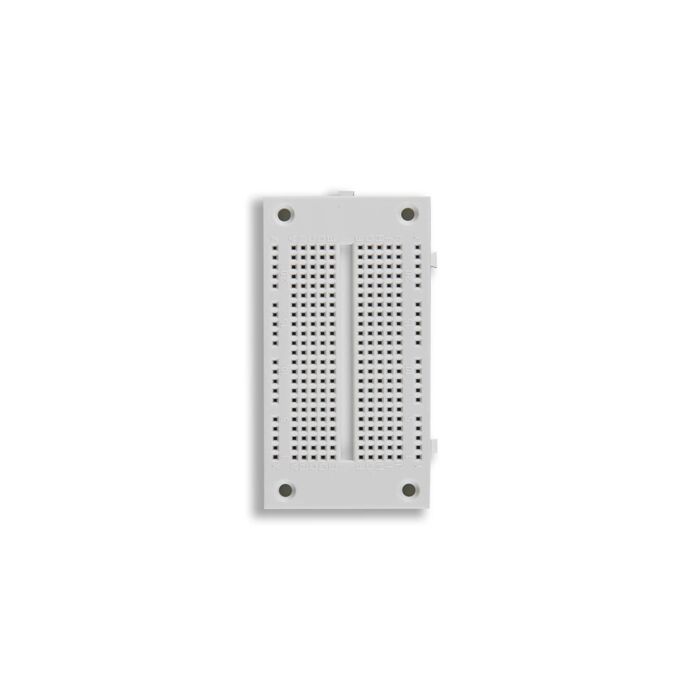

Cal Test Electronics EXP-350E

Product Highlights

• Type Solderless Breadboard
• Tie-Points 270
• Terminal Clips 54
• Breadboard Material ABS
• Spring Clip Material Nickel plated phosphor bronze
• Allowable Wire Diameter 0.4 - 0.7 mm
• Length 3.25 in
• Width 1.75 in
• Depth 8 mm (0.33 in)
• Current Capacity 1.5 A, 36 V
• 16-Pin IC Capacity 3
• Warranty 3 years

The EXP-350E offers molded interlocking edge rails on all four sides to permit parallel or perpendicular socket arrays, allowing more boards to be added at any point for maximum circuit design flexibility. The EXP-350E utilizes 0.3" DIP spacing and the molded-in mounting holes allow for either front or rear mounting. There is a heavy-duty Mylar backing to prevent short circuits. The integrated bus strips allow for fast connections to power and signal lines. Made from high impact plastic with phosphor bronze contacts, the EXP-350E is built for quality and performance.
