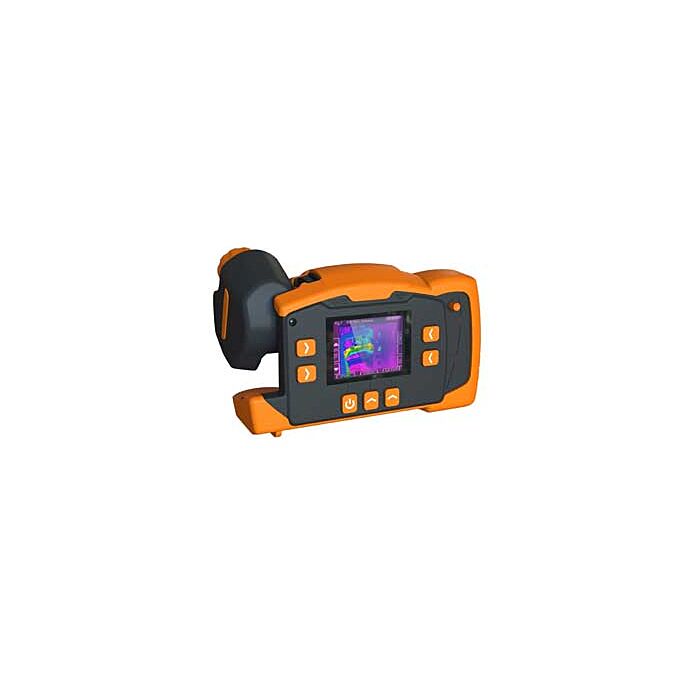

CorDEX TC7000
Intrinsically Safe Thermal Imager, 9hz
Order #: TC7000
Mfg #: TC7000
Special Price
$6,745.31
Regular Price
$11,893.00
CorDEX TC7000
Intrinsically Safe Thermal Imager, 9hz
Order #: TC7000
Mfg #: TC7000
Special Price
$6,745.31
Regular Price
$11,893.00
Limited quantities. Pricing valid for quantities in stock only.
Questions?
Contact our Certified Thermographer Ben at 800-854-4960.
Availability:
In stock
Product Highlights
- ATEX/IECEx Certified for Zone 1, 2, 21, 22 & M2 explosive areas
- No waiting for hot work permits with intrinsically safe design
- Perform safe electrical inspection with RFID compatability to CorDEX Intelligent IR Windows
- Find the smallest defects with the high resolution 320 x 240 IR detector
- Measurement Range -4°F to 1112°F (-20°C to +600°C )
- Accuracy ± 2°C or 2% of reading
- Image Frequency 9Hz
- Detector 320 x 240 uncooled microbolometer
- Thermal Sensitivity/NETD 50mK
- Spectral Range 8µm to 14µm
- Field of View (FOV) 25° x 20.5°
- Spatial resolution (IFOV) 1.38 mrad
- Minimum focus distance 4 (10cm)
- Lens F 1.2
- Operating Temperature -4°F to 104°F (-20°C to +40°C)
- Storage Temperature -40°F to +158°F (-40°C to +70°C)
- Display 3.2 Backlit LCD
- Software CorDEX CONNECT (Included)
- Batteries 3 x MN1500 primary cell
Each Unit Includes
- Intrinsically Safe Thermal Imaging Camera
- 3 x MN1500 primary Cells
- Hard carry case
- Wrist strap
- 5 x RFID Tags
- USB communication wand
- Documentation CD
| Certificate Information | |
|---|---|
| ATEX / IECEx Certificate No | TRAC12ATEX0037X / IECEx TRC 12.0019X |
| ATEX / IECEx Certificate Types |
|
| Temperature Information | |
| Measurement Range | -4°F to 1112°F (-20°C to +600°C ) |
| Accuracy | ± 2°C or 2% of reading |
| Imaging | |
| Image Frequency | 9Hz |
| Detector | 320 x 240 uncooled microbolometer |
| Thermal Sensitivity/NETD | 50mK |
| Spectral Range | 8μm to 14μm |
| Field of View (FOV) | 25° x 20.5° |
| Spatial resolution (IFOV) | 1.38 mrad |
| Minimum focus distance | ≈ 4” (10cm) |
| Lens | F 1.2 |
| Image Capture | File Storage | 8GB |
| File Formats | CDX (Radiometric) JPEG (Non-radiometric) |
| Voice Annotation | YES |
| RFID Tag Reader |
|
| General | |
| Operating Temperature | -4°F to 104°F (-20°C to +40°C) |
| Storage Temperature | -40°F to +158°F (-40°C to +70°C) |
| Display | 3.2” Backlit LCD |
| Software | CorDEX CONNECT (Included) |
| Batteries | Rechargeable Lithium-ion |
