Siglent SHA851A

Product Highlights

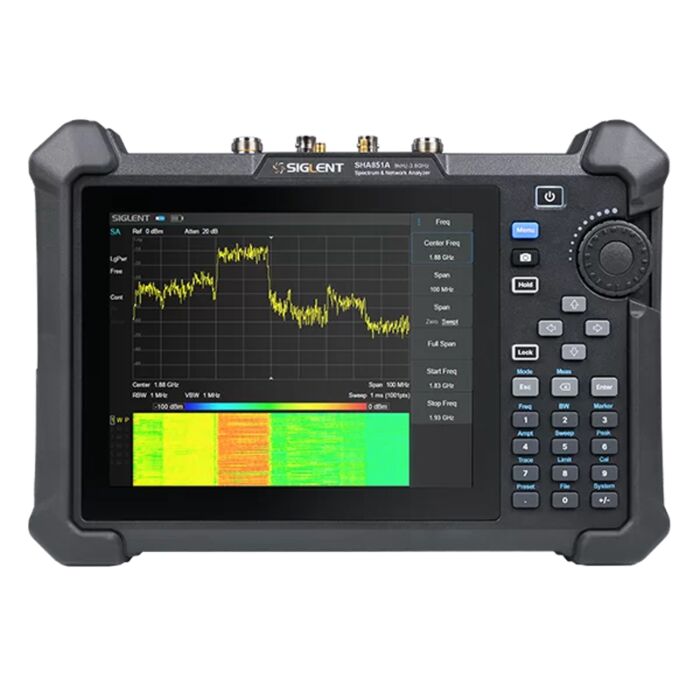

SIGLENT SHA851A, a handheld portable spectrum analyzer and cable-and-antenna analyzer, is a powerful and flexible tool for those field and outdoor RF applications.

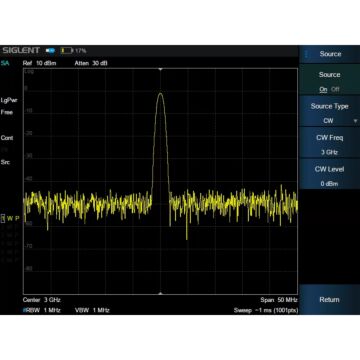

With a frequency range up to 3.6 GHz, the analyzer delivers reliable automatic measurements and multiple modes of operation. A spectrum analyzer, including built-in amplifier and independent signal source, fast scanning speed, high sensitivity, can achieve broadcast monitoring, channel power scanning, wireless interference location, power monitoring, electromagnetic compatibility, and other functions. A cable and antenna tester including built-in DC voltage bias, with a 1-path-2-port vector network analysis function, can measure TDR, VSWR, port matching debugging, insertion loss measurement, tower amplifier debugging, cable fault location, Smith chart, etc.

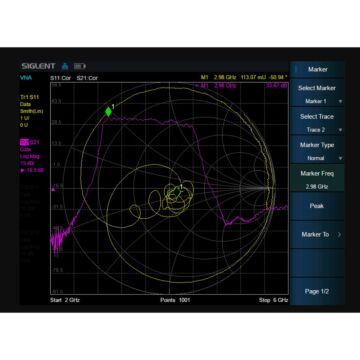

• Standard SA and CAT mode, optional VNA mode
• Frequency Range from 9 kHz up to 3.6 GHz
• -165 dBm/Hz Displayed Average Noise Level (Typ.)
• -104 dBc/Hz@1 GHz, 10 kHz offset SSB Phase Noise (Typ.)
• 114 dB Dynamic Range in VNA mode (Typ.)

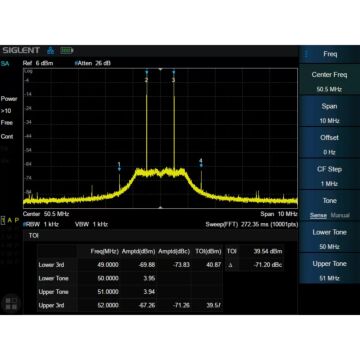

• Channel power, ACPR, Harmonics, and TOI measurement option
• Standard preamplifier, 8.4" touch screen, 4 hours working time

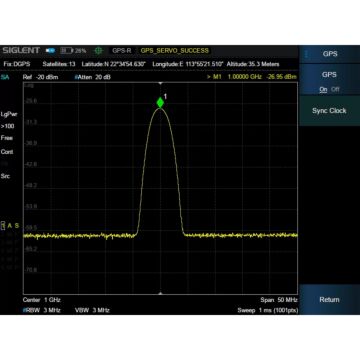

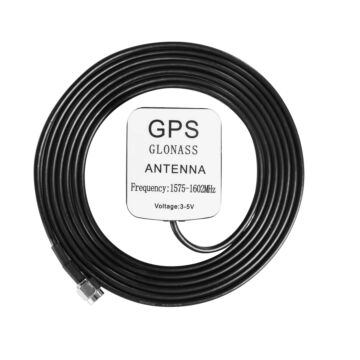

• GPS location and logging
