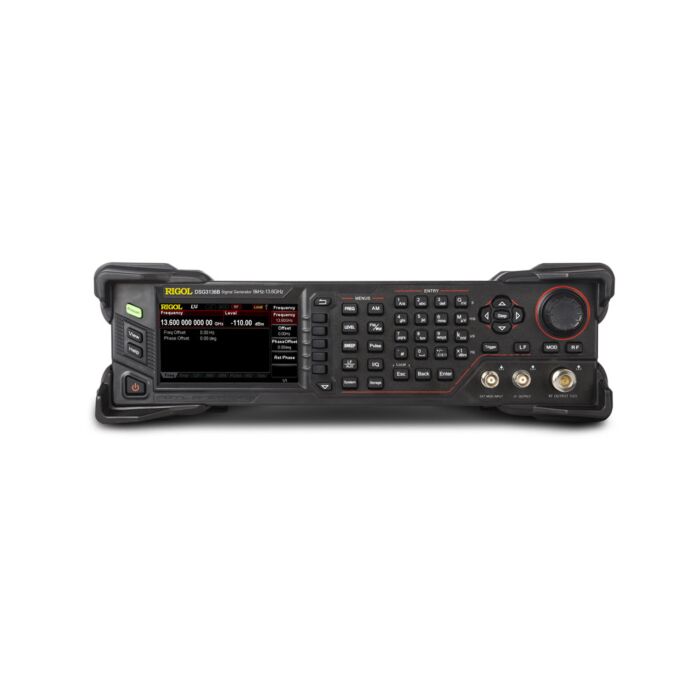

RIGOL DSG3136B

Product Highlights

The DSG3000B series is a high-performance RF signal generator. It provides comprehensive modulation solutions: AM/FM/ΦM analog modulation; pulse modulation with user-defined pulse train; and I/Q modulation. All the modulations support internal and external modulation sources. In addition, to meet the demands of production environments, the DSG3000B series has undergone a strict verification through the experiments in its design and production stages to ensure its high stability and reliability. The DSG3000B series also features a clear user interface, compact size and light weight. It is easy to operate and can output stable, precise and pure signals. It is an ideal tool in various fields such as communication, computers, instrumentation, R&D, education, production and maintenance.

• Highest frequency: 13.6 GHz
• Amplitude accuracy: <0.5 dB (typical)
• Output amplitude range: -130 dBm to +27 dBm (setting range)
• High signal purity, phase noise: <-116 dBc/Hz@20 kHz (typical)
• Standard 1 ppm internal clock; optional 5 ppb high stable clock
• Standard AM/FM/ΦM analog modulation
• Support pulse modulation; on/off ratio up to 70 dB; user-defined pulse train generator
• I/Q modulation and I/Q baseband output
• All modulations support internal and external modulation modes
• Standard 2U height design to save rack space; rack mount kit is available
• Support USB/LAN/GPIB remote control; SCPI command set
• Wear-free electronic attenuator design
