Keysight N8761A DC Power Supply 300V, 17A, 5100W; GPIB, LAN, USB, LXI
DC Power Supply 300V, 17A, 5100W; GPIB, LAN, USB, LXI

Order #: N8761A

Mfg #: N8761A

Questions about availability or need help? Contact Us:

(800) 633-0561

Keysight N8761A DC Power Supply 300V, 17A, 5100W; GPIB, LAN, USB, LXI

DC Power Supply 300V, 17A, 5100W; GPIB, LAN, USB, LXI

Order #: N8761A

Mfg #: N8761A

Loading...
Print Save Item Compare
Register to view exclusive member pricing
Availability: Ships in 4-6 weeks

Choose Your Options:

This product is available for shipping to the United States and Canada only.

Product Highlights

  • DC Output Ratings
    • Voltage: 300V
    • Current: 17A
    • Power: 5100W
  • Programming Accuracy
    • Voltage: 0.025% + 225mV
    • Current: 0.1% + 51mA
  • Output Ripple and Noise
    • CV p-p: 300mV
    • CV rms: 60mV

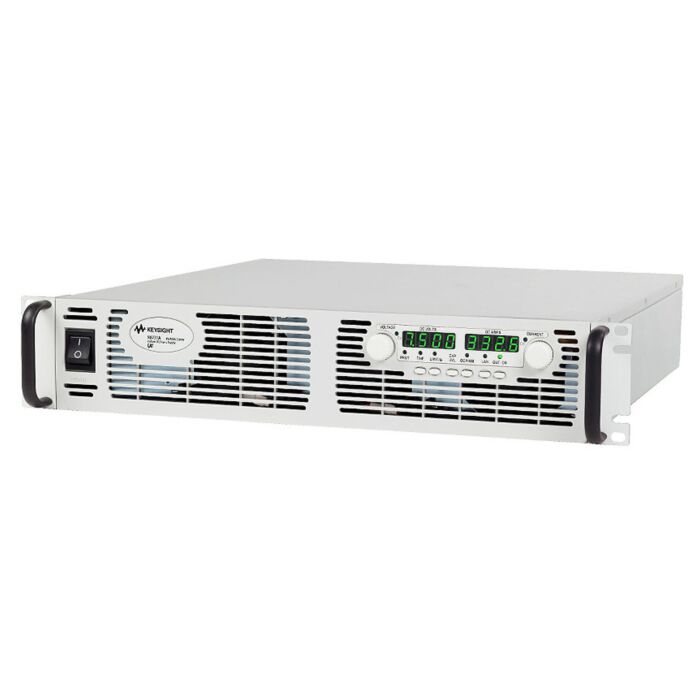

    • Keysight basic DC power supplies offer essential features for a tight budget. The Keysight N8761A is a 300V, 17A, 5100W, single output power supply in a small 2U package. It offers flexible AC input options, analog/resistance control of output voltage and current, as well as parallel and series connection of multiple supplies to achieve more output current or voltage respectively.

    Please select the AC input voltage option carefully. The AC input voltage hardware is permanently installed at the factory and cannot be changed under any circumstances after delivery.

    If the wrong AC input voltage option is purchased and delivered, the unit would need to be returned. Product returns are subject to Keysight approval and applicable charges. A new order would then have to be placed.
