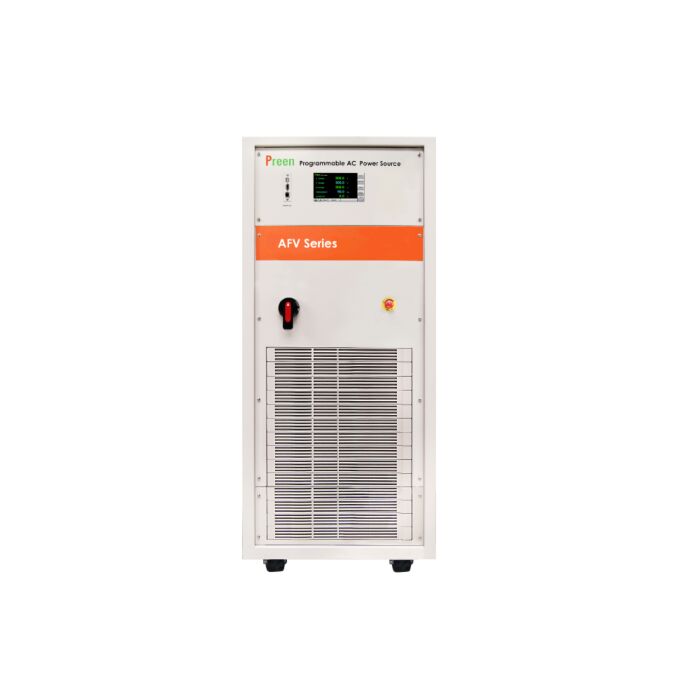

Preen Power AFV-33030-480-H400/AFV-006

Product Highlights

High Power Programmable AC Power Source (three-Phase Input)(30kVA/310V/45-120Hz)

The AFV is a series of programmable AC power source that can be remote controlled and integrated with other systems for easier operation. Applications include home appliance, electronic, medical equipment, lighting, etc. With better accuracy and faster response time, the AFV series offers greater advantage for R&D and compliance tests. Utilized PWM switching technology, AFV provides high quality pure sine waveform with output level up to 2,000kVA. The AC source is coupled with output voltage range of 0~310V and output frequency of standard 45~120Hz or optional 45~500Hz. Users can select communication interfaces of RS-485, RS-232, Ethernet and optional GPIB, Analog. The AFV series also have programming sequence functions of STEP and GRADUAL modes, three phase independent control, and soft start for optional choices.

The AFV is a series of programmable AC power source that can be remote controlled and integrated with other systems for easier operation. Applications include home appliance, electronic, medical equipment, lighting, etc. With better accuracy and faster response time, the AFV series offers greater advantage for R&D and compliance tests. Utilized PWM switching technology, AFV provides high quality pure sine waveform with output level up to 2,000kVA.

STEP and GRADUAL Modes

AFV series has the STEP and GRADUAL program mode for sequence settings with loop feature. The output voltage, frequency, and running time in each sequence can be set on the touch screen. These functions are widely used in the performance test of electric motor or home appliance load.

User-friendly Touch Screen and Remote Control

With the 7-inch touch screen, the AFV series provides an intuitive and easy operation. Through the remote control interface (RS-485 / RS-232 / GPIB / Ethernet), users can set the desired output parameters and monitor the output value.

Wide Variety of Applications

With its high reliability, capability of complex power line simulation and high output power, the AFV series has been widely applied for applications on home appliance, electric vehicle charger, motor, electronics and medical equipment. It is an AC power source suitable from R&D verification to mass production testing.

• CE & RoHS certificated.
• Modularized inverter which is compact, smaller, high power density and easy to maintain.
• 7-inch touch screen which can display the phase voltage, current, frequency, active/apparent power, power factor and test information.
• Ability to simulate abnormal power status: STEP and GRADUAL modes allow users to set sequences of start/end voltage, frequency and running time with ease.
• Comprehensive protections which include output undervoltage / overvoltage, overcurrent, overload, input undervoltage / overvoltage, overheat and other more than twenty fault conditions.
• Three-phase voltage independently adjustable function: each phase voltage can be adjusted independently; therefore AFV can power more than one single-phase loads.
• Phase angle adjustment function: can adjust the phase angle between each phase (for three phase system).
