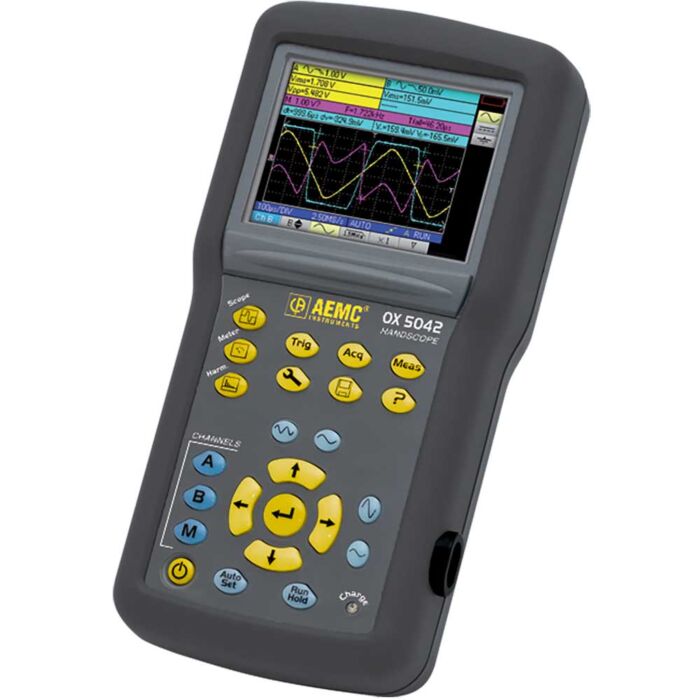

AEMC Instruments OX5042-KIT HH Portable Oscilloscope

Product Highlights

The compact, shockproof, IP54, Handscope Oscilloscope Model OX 5042 can be comfortably held in one hand. The Handscope is an ergonomically designed instrument equipped with a color screen and LED backlighting for precise, crisp data display. Integrated multilingual help screens are available at all times to make it simpler to use.

The Model OX 5042 combines three measuring instruments in one:

• 2 fully isolated channels, 600V CATIII
• 40MHz oscilloscope, range 5mV to 200V/div
• Independent 8000-count multimeter with power measurement
• Built-in harmonic analyzer out to the 31st harmonic (fundamental between 40Hz and 450Hz)
• 2 MB of storage are available for recording data. In the multimeter mode, it is possible to store graphic recordings of 2700 measurements from 5 min to 1 month.

Each Unit Includes

• Meter
• Field case (IP67)
• BNC adapter
• USB cable and driver
• 1 10:1 600V/BNC-M probe
• US wall plug
• Set of 2 10 ft. color-coded (Rd/Bk) leads
• Alligator clips and test probes
• Cat #2132.59 – AC Current Probe Model MN251T (200A, 1mV/A 10 ft. BNC connector)
• Cat #2132.63 – MiniFlex® 3000-24-1-1 (3000A, 1mV/A, 24" MiniFlex® sensor, 10 ft. BNC connector)
• 6 1.2V NiMH rechargeable batteries
• Quick start guide
• USB drive with software
• User manual
