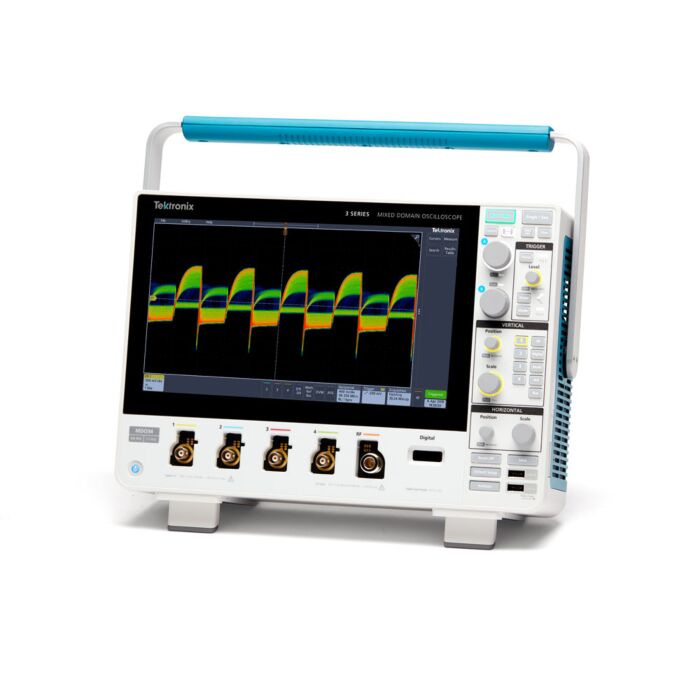

Tektronix MDO34 3 Series MDO Oscilloscope, 350 MHz, 4 TekVPI Channels

Product Highlights

• 350 MHz
• 4 Cahnnels
• Built-in spectrum analyzer available in 1 GHz or 3 GHz versions
• 11.6-inch HD (1920x1080) capacitive touch display is the largest in its class
• Optional 16 digital channels for mixed signal analysis
• Optional built-in function generator
• Wide range of serial bus decoding options
• Less than 6-inches deep on the bench

Typical Applications:

• Embedded Design and IoT

  Discover and solve issues quickly by performing system level debug on mixed signal embedded systems including today's most common serial bus technologies with the 3 series MDO and support for a broad set of common serial buses.

• Power Design

  Make reliable and repeatable voltage, current, and power measurements using automated power quality, switching loss, harmonics, ripple, modulation, and safe operating area measurements with the widest selection of power probes in an affordable solution.

• Education

  Managing multiple instruments on a bench can be troublesome. The 3 Series MDO combines analog, digital, and RF measurements with a signal source in a single, small (5.9 in., 149 mm deep) instrument. The combination of a small instrument and high level of integration aids in the teaching of various electronics principles as well as in its usage for more sophisticated lab experiments. Full upgradeability enables adding functionality over time as needs change or budgets allow.

• Manufacturing Test and Troubleshooting

  Size and space constraints can play havoc on a manufacturing floor. The 3 Series MDO minimizes rack or bench space by integrating multiple instruments into one small package. Integration reduces cost associated with utilizing multiple different instrument types in manufacturing test or troubleshooting stations.

• Service Installation and Maintenance

  Having the right instruments when and where you need them is critical. The 3 Series MDO combines analog waveforms, digital logic, and spectrum analysis in a lightweight (11.7 lbs, 5.3 kg), portable package - making it the perfect choice where space is limited and flexibility is desired.
