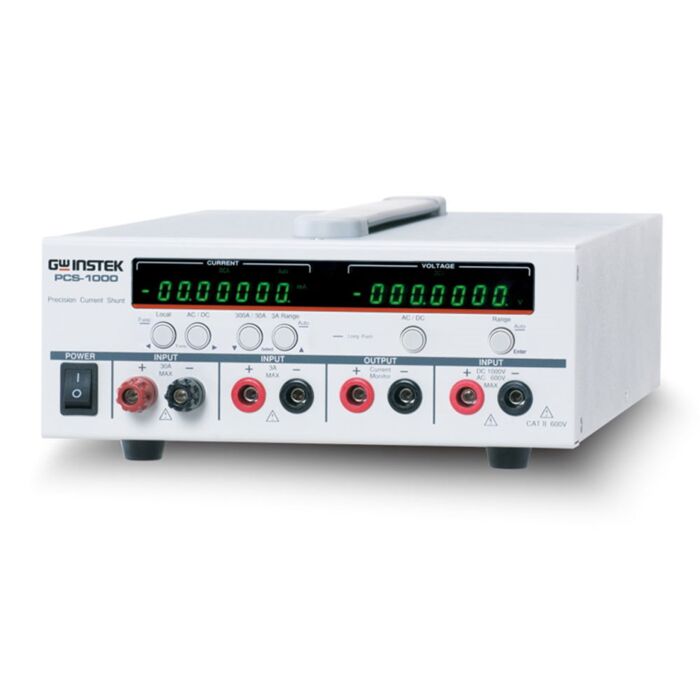

GW Instek PCS-1000
High Precision Current Shunt DC/AC Current w/Isolated Output
Order #: PCS-1000
Mfg #: PCS-1000I
$6,468.00
GW Instek PCS-1000
High Precision Current Shunt DC/AC Current w/Isolated Output
Order #: PCS-1000
Mfg #: PCS-1000I
Product Highlights
- 6 1/2 Digit measurement resolution
- Dual measurement for Voltage and Current
- AC&DC Current measurement range: 30mA/300mA/3A/30A/300A(Max)
- AC Voltage measurement range: 200mV/2V/20V/200V/600V(Max)
- DC Voltage measurement range: 200mV/2V/20V/200V/1000V(Max)
- Auto zero circuit
- Standard Interfaces: USB, GPIB
- Power Supply 100V/120V/220V/240V±10%
- Power Line Frequency 50/60Hz
- Operating Environment Full Accuracy for 0℃ to 50℃, Full accuracy to 80% R.H. at 40℃
- Storage Environment -40℃ to 70℃
- Power Consumprion Max 35VA
- Dimensions 210 mm (W) x 80mm(H) x 390 mm(D)
- Weight Approx 6kg
Each Unit Includes
- User Manual
- AC Power Cord
