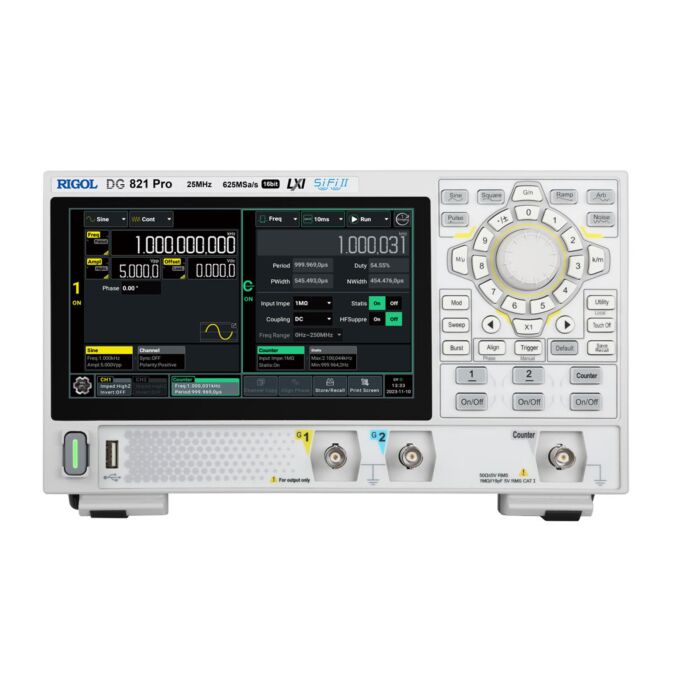

Rigol DG821 PRO Waveform Generator, 25MHz, 625MSa/s, 16bit, 1 channel

Product Highlights

The DG800 redefines the entry level waveform generator by bringing advanced capabilities like 16 bit high resolution, intuitive touch screen control, and a quiet fanless design to our most affordable line of generators. Add SiFi II point-to-point sampling technology and 2 MPts of standard arb memory and the DG800 Series delivers a powerful low cost generator for students and engineers alike.

Features

• Unique SiFi II (Signal Fidelity II) technology:
  • Generate the arbitrary waveforms point by point
  • Recover the signal without distortion
  • Sample rate accurate and adjustable
  • Jitter of all the output waveforms (including Sine, Pulse, etc.) as low as 200 ps
• 2 Mpts memory depth (standard); 8 Mpts memory depth (optional) per channel for arbitrary waveforms
• Optional dual-channel with the same performance, equivalent to two independent signal sources
• High frequency stability: ±1 ppm; low phase noise: -105 dBc/Hz
• Built-in high-order harmonic generator (at most 8-order harmonics)
• Built-in 7 digits/s, 240 MHz bandwidth full-featured frequency counter
• Up to 160 built-in arbitrary waveforms, covering the common signals in engineering application, medical electronics, auto electronics, math processing, and other various fields
• Sample rate up to 125 MSa/s, vertical resolution 16 bits
• Arbitrary waveform sequence editing function available; arbitrary waveforms also can be generated through the PC software
• Various analog and digital modulation functions: AM, FM, PM, ASK, FSK, PSK, and PWM.
• Standard waveform combine function, capable of outputting specified waveforms combined with the basic waveforms
• Standard channel tracking function, when enabled, all the parameters of both channels are updated based on users' configurations
• USB Host & Device interface (standard); USB-GPIB function supported
• 4.3 inch TFT color touch screen
• RS232, PRBS, and Dual-tone outputs supported
