Fluke 1555 FC KIT W/IR3000 10K Insulation Tester Kit with IR3000 wireless data connector
10K Insulation Tester Kit with IR3000 wireless data connector
Order #: 1555-KIT-IR3000FC
Mfg #: 4977469
$10,651.51
Fluke 1555 FC KIT W/IR3000 10K Insulation Tester Kit with IR3000 wireless data connector
10K Insulation Tester Kit with IR3000 wireless data connector
Order #: 1555-KIT-IR3000FC
Mfg #: 4977469
$10,651.51
Availability:
In stock
Overview
Evaluate the trends, eliminate the doubt
The Fluke 1555 insulation resistance tester offers digital insulation testing up to 10 kV, making them ideal for testing a wide range of high voltage equipment including switchgear, motors, generators and cables.
Fluke insulation testers can now conduct the entire range of test voltages specified in IEEE 43-2000 with a best in class, 3 year warranty and CAT IV 600 V safety rating. With measurement storage and PC interface, the 1555 is the perfect tool for preventive or predictive maintenance programs designed to identify potential equipment failures before they occur.
The Fluke 1550C and 1555 Insulation testers, combined with the ir3000 FC connector and Fluke Connect, allow users to perform advanced insulation testing for preventive and PdM tasks.
Product Highlights
- Test voltages up to 10 kV provides solutions for all applications
- CAT IV 600 V safety rating
- Voltage breakdown detection alerts the user that voltage is present and gives the voltage reading up to 600 V ac or dc for increased user safety
- Selectable test voltages in 50 V steps from 250 to 1000 V, and 100 V steps 1000 V
- Measurements can be stored in up to 99 memory locations, with each location assigned a unique, user defined, label for easy recall
- Long battery life gives the user over 750 tests between charges
- Automatic calculation of Dielectric Absorption (DAR) and Polarization Index (PI) with no additional setup
- Guard system eliminates the effect of surface leakage current on high-resistance measurements
- Large digital/analog LCD for easy viewing
- Capacitance and leakage current measurement
- Ramp function for breakdown testing
- Resistance measurements up to 2TΩ
- Timer settings up to 99 minutes for timed tests
- 3-year warranty

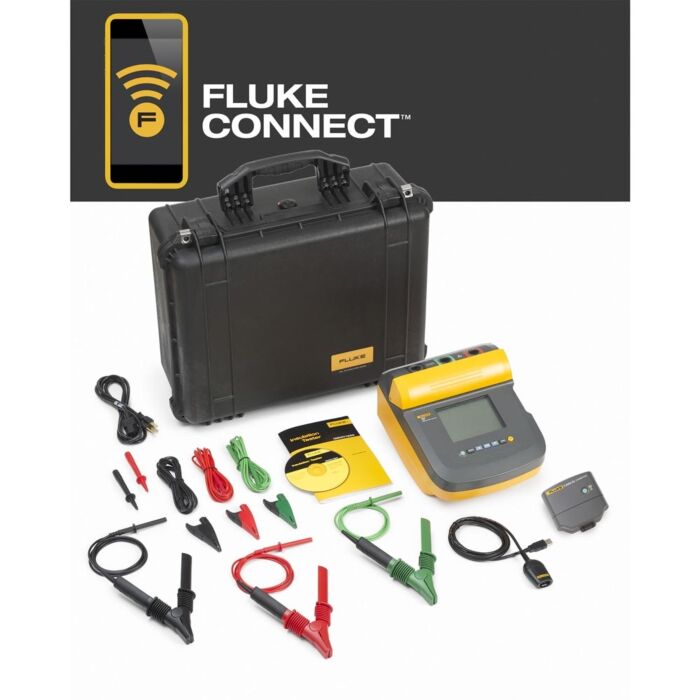

Each Unit Includes
- IR3000FC Wireless data Connector
- Test cables with alligator clips (red, black, green)
- Ruggedized Alligator clips
- Infrared adapter with interface cable
- FlukeView Forms basic CD-ROM
- AC power cord
- IP67 hard carrying case
- Users manual on CD-ROM
- Quick Reference card
- English manual
- USB-IR cable installation guide
- FlukeView Forms installation guide
- Certificate of calibration
| Electrical Specifications | ||
| The tester's accuracy is specified for one year after calibration at operating temperatures of 0°C to 35°C. For operating temperatures outside the range (-20°C to 0°C and 35°C to 50°C), add ±.25% per °C, except on the 20% bands add ±1% per °C. | ||
| Test voltage (DC) | ||
| 250 V | Range | < 250 kΩ, |
| 250 kΩ to 5 GΩ | ||
| 5 GΩ to 50 GΩ | ||
| > 50 GΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| 500 V | Range | < 500 kΩ |
| 500 kΩ to 10 GΩ | ||
| 10 GΩ to 100 GΩ | ||
| > 100 GΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| 1000 V | Range | < 1 MΩ |
| 1 MΩ to 20 GΩ | ||
| 20 GΩ to 200 GΩ | ||
| > 200 GΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| 2500 V | Range | < 2.5 MΩ |
| 2.5 MΩ to 50 GΩ | ||
| 50 GΩ to 500 GΩ | ||
| > 500 GΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| 5000 V | Range | < 5 MΩ |
| 5 MΩ to 100 GΩ | ||
| 100 GΩ to 1 TΩ | ||
| > 1 TΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| 10000 V | Range | < 10 MΩ |
| 10 MΩ to 200 GΩ | ||
| 200 GΩ to 2 TΩ | ||
| > 2 TΩ | ||
| Accuracy (± reading) | Unspecified | |
| 5% | ||
| 20% | ||
| Unspecified | ||
| Bar graph range | 0 to 1 TΩ (1550C) - 0 to 2 TΩ (1555) | |
| Insulation test voltage accuracy | -0%, +10% at 1 mA load current | |
| Induced AC mains current rejection | 2 mA maximum | |
| Charging rate for capacitive load | 5 seconds per μF | |
| Discharge rate for capacitive load | 1.5 s/μF | |
| Leakage current measurement | Range | 1 nA to 2 mA |
| Accuracy | ±(5% + 2 nA) | |
| Capacitance measurement | Range | 0.01 μF to 15.00 μF |
| Accuracy | ±(15% rdg + 0.03 μF) | |
| Timer | Range | 0 to 99 minutes |
| Resolution setting | 1 minute | |
| Resolution indication | 1 second | |
| Live circuit warning | Warning range | 30 V to 660 V AC/DC, 50/60 Hz |
| Voltage accuracy | ±(15% + 2 V) | |
| Software specifications | FlukeView Forms™ basic software requires a PC running Windows XP, Windows Vista , Windows 7 or Windows 8. | |
| General Specifications | ||
| Display | 75 x 105 mm | |
| Power | 12 V lead-acid rechargeable battery, Yuasa NP2.8-12 | |
| Charger Input (AC) | 85 V to 250 V AC 50/60 Hz 20 VA | |
| This Class II (double insulated) instrument is supplied with a Class 1 (grounded) power cord. The protective earth terminal (ground pin) is not connected internally. The extra pin is for added plug retention only. | ||
| Dimensions | 269 x 277 x 160 mm (10.6 x 10.9 x 6.3 in) | |
| Weight | 3.7 kg (8.2 lb) | |
| Temperature (operating) | -20°C to 50°C (-4°F to 122°F) | |
| Temperature (storage) | -20°C to 65°C (-4°F to 149°F) | |
| Humidity | 80% to 31°C decreasing linearly to 50% at 50°C | |
| Altitude | 2000 m | |
| Enclosure sealing | IP40 | |
| Input overload protection | 1000 V AC | |
| Electromagnetic compatibility | EN 61326 | |
| Safety compliance | IEC 61010-1: Overvoltage category II, Pollution Degree 2. | |
| IEC 61010-2-030: Measurement 600V CAT IV / 1000V CAT III | ||
| IEC 61557-1, IEC 61557-2 | ||
