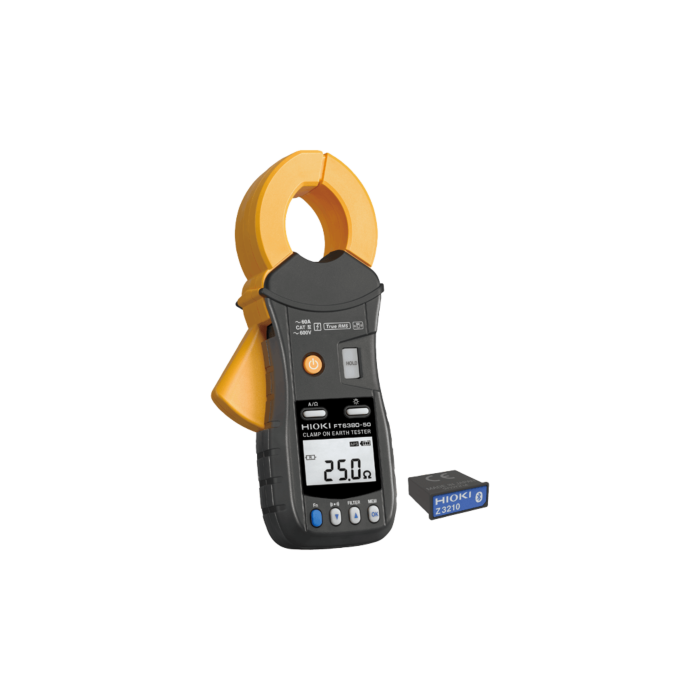

Hioki FT6380-90 Earth Tester, Clamp-On, Wireless, FMI

Product Highlights

The FT6380-90 measures grounding resistance simply by clamping to multiple-grounded ground wires. No auxiliary grounding rod is needed, and there is no need to disconnect the ground wire from the grounding rod. The compact, low-profile sensor can be used to clamp ground wires with ease, and also provide AC current measurement functionality and can measure currents ranging from leakage current on the order of several mA to load currents of up to 60 A.

• 32 mm (1.26 in) Jaw Diameter
• Earth resistance measurement for multi-grounded systems
• Measure leak current with absolute certainty with highly sensitive 0.01 mA resolution (at 20.00 mA range)
• Measure load current up to 60.0 A range
• Easily transfer measurement data to your smartphone or tablet by using our free app GENNECT Cross or to an Excel file (Wireless Adapter Z3210 is necessary)
• Clamp at the narrowest point

Each Unit Includes

• Wireless Adapter Z3210
• Carrying case
• Resistance check loop (1 Ω+/-2%, 25Ω+/-1%)
• Strap, LR6 alkaline battery x 2
• Instruction manual
