Olympus Evident 8600
Order #: 8600-1-S-U-U-E-EN
Mfg #: 8600-1-S-U-U-E-EN
Product Highlights
Magna-Mike 8600

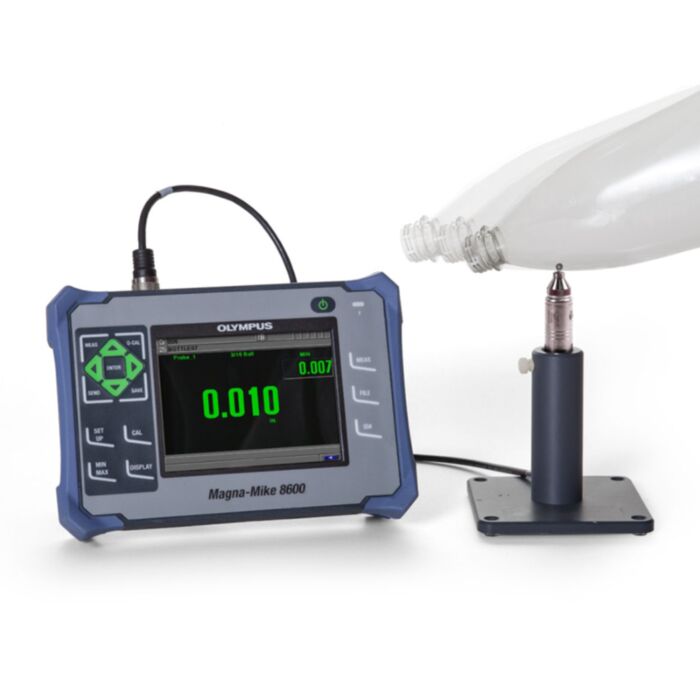

The Magna-Mike® 8600 is a portable thickness gauge that uses a simple magnetic method to make reliable and repeatable measurements on nonferrous materials. Operation of the Magna-Mike is very simple. Measurements are made when its magnetic probe is held or scanned on one side of the test material and a small target ball (or disk or wire) is placed on the opposite side or dropped inside a container. The probe's Hall Effect sensor measures the distance between the probe tip and target ball. The measurements are instantly displayed on the large color thickness display as an easy-to-read digital thickness reading.
- Three new durable probe designs:
- Straight, Right Angle, and Low-profile Articulating
- Replaceable Wear Caps
- Standard, Chisel tip, and Extended Wear (for 86PR-1 and 86PR-2 only)
- Expanded target selection
- 3/16 and 1/4 in. magnetic target balls
- 0.045 in. (1.14 mm) 0.026 in. (0.66 mm) diameter wire target
- Expanded thickness range up to 25.4 mm (1.00 in.)
- Larger Color VGA display
- RS-232, USB and VGA outputs
- Fast Measurement update rate 60 Hz
- Expanded alphanumeric data logger
- Save and Recall stored calibration files
- Ability to export file to MicroSD card in .txt and CSV formats
- New accessory kits (Calibration kits)
- Standard up to 9.1 mm (0.360 in.)
- Extended range up to 25.4 mm (1 in.)
- Disk kit
- Wire target kit
- Low-profile probe kit
-

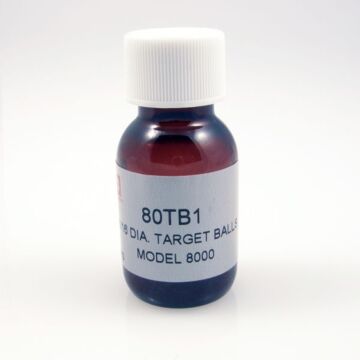

Olympus Evident 80TB11/16 In. Target Balls. PK/200Order #: 80TB1
Mfg #: 80TB1
Availability: Ships in 3-4 weeks$67.54 -
Olympus Evident 80TB21/8 In. Target Balls. PK/300
Order #: 80TB2
Mfg #: 80TB2
Availability:In stock$67.54 -
Olympus Evident 80TB33/6 In. Target Balls. PK/75
Order #: 80TB3
Mfg #: 80TB3
Availability: Ships in 3-4 weeks$70.82
| General | Overall dimension | 236 mm x 167 mm x 70 mm (9.3 in. x 6.57 in. x 2.76 in.) |
|---|---|---|
| Weight | 1.68 kg (3.72 lb), including lithium-ion battery | |
| Keypad | English, Japanese, Chinese, International | |
| Languages | English, Spanish, French, German, Japanese, Chinese, Portuguese, Swedish, Norwegian, Dutch, Polish, Russian, Hungarian, Czech, Italian | |
| Data storage | Onboard and removable 2 GB MicroSD card | |
| Battery life (Optional) | 16 h (lithium-ion) | |
| Power requirements | AC Mains: 100 VAC to120 VAC, 200 VAC to 240 VAC | |
| Display type | Full VGA (640 x 480 pixels) transflective color LCD | |
| Display dimensions (W x H, Diag.) | 117 mm x 89 mm, 146 mm (4.62 in. x 3.49 in., 5.76 in.) | |
| Min/Max capture mode | Captured at 60 Hz measurement rate | |
| Display update rate | 4, 8, 16 and 20 Hz | |
| Alarm | High and Low alarms | |
| Resolution | 0.1 mm (0.01 in.), 0.01 mm (0.001 in.), 0.001 mm (0.0001 in.) (depending on thickness range) | |
| Data logger | Internal file-based alphanumeric data logger | |
| Probes | 86PR-1 | Standard straight probe 82.30 mm (3.24 in) long and 18.62 mm (0.733 in.) dia. |
| 86PR-2 | Right angle probe head 58.84 mm x 18.62 mm, length 178.57 mm (2.32 in. x 0.733 in. dia.,length 7.030 in.) | |
| 86PR-3 | Low-profile articulating probe 241.3 mm (9.5 in.) long | |
| Environmental Testing | Vibration | MIL-STD-810G, Method 514.6, Procedure I |
| Drop | MIL-STD-810G, Method 516.6, Procedure IV | |
| Shock | MIL-STD-810G, Method 516.6 | |
| Designed for IP67 | Yes | |
| Inputs/Outputs | USB | USB 2.0 peripheral port |
| RS-232 | Yes | |
| Memory card | Maximum capacity: 2 GB removable MicroSD memory card | |
| Video output | VGA output standard | |
| Foot switch (optional) | Programmable (Save, Send, Meas or Q-Cal) | |
| Operation temperature | -10 °C to 50 °C (14 °F to 122 °F) |
