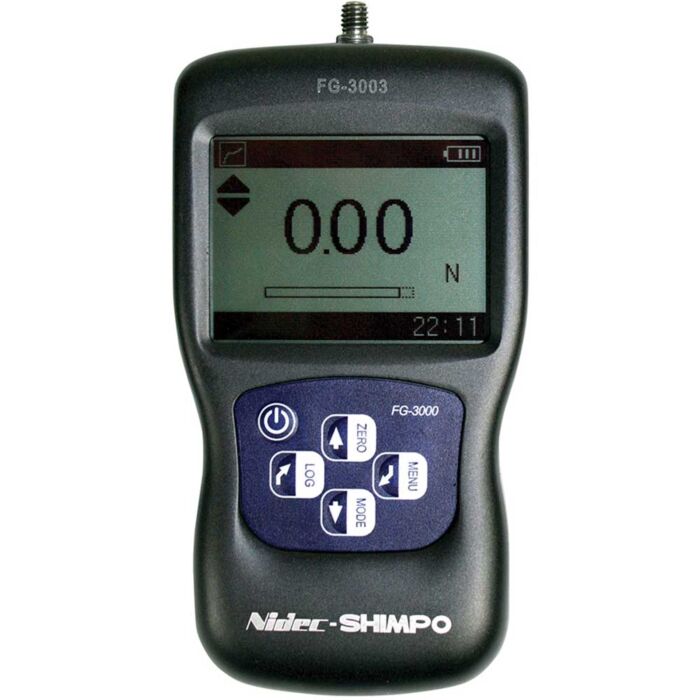

Shimpo FG-3003

Digital Force Gauge,2.2 lbf

Order #: FG-3003

Mfg #: FG-3003

Special Price $458.25 Regular Price $487.50

Availability: Ships in 3-4 weeks

1000 Hz Sample Rate combined with +/-0.3% F.S. accuracy provides fast sampling producing great resolution and more accurate results
Three mode operation: Track, Peak & Preset Limits
180° reversible display, tension/compression icons, and vertical printed keypad allows usage as a portable gauge or mounted upside down on a test stand
Programmable High & Low Limits allow for instant visual and audible indication of pass or fail testing in Preset mode
500 point data collection capability can be viewed on display, sent to optional printer, or uploaded to software package for further analysis
Rugged, ergonomic die cast aluminum construction allows usage in demanding applications
Comparator output function provides user with easy Pass/Fail testing system integration capabilities
Multi-language and engineering unit's selection provides flexible user comfort
Field Calibration capability eliminates need to send to lab
Calibration Certificate included along with popular adapter attachments
Free Data logging/graphing software available for free download

AC Adapter/Charger
USB Cable
Calibration Certificate
Six Attachments: Hook, Flat Tip, Conical Tip, Chisel Tip, Notched Tip, Extension Shaft
Carrying Case
