Mark-10 TSA750 Test Stand, Lever-Operated, 750 lbs, Vertical

Product Highlights

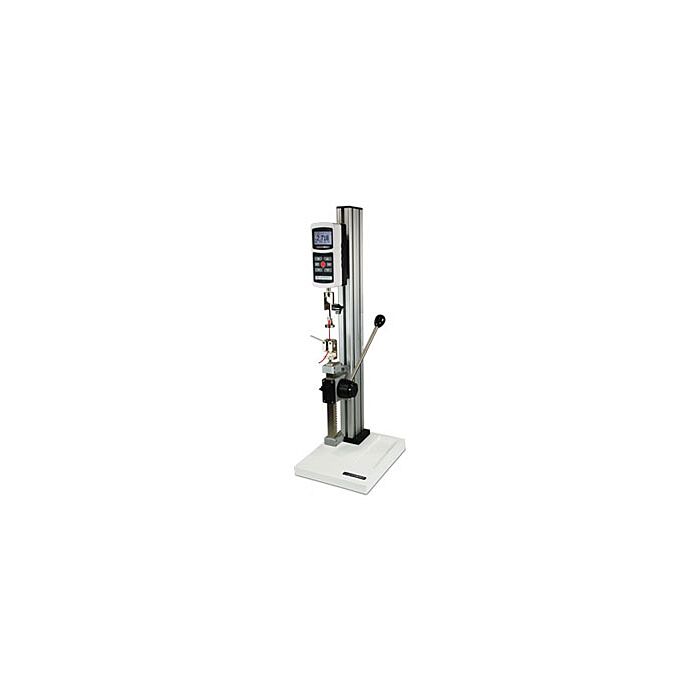

• Shown testing the peel force of a sample, with a Series 5 digital force gauge, and film & paper grips, not included
• Maximum force: 750 lb [3.75 kN]
• Maximum travel, with stops: 3.75" [95 mm]
• Maximum travel, without stops: 6" [152 mm]
• Travel rate: 3" [76.2 mm]/lever revolution
• Compatible with all Mark-10 force gauges, accessories and grips
• Loading lever can be positioned in 30° increments for ease of operation
• Threaded holes for bench mounting
• Adjustable travel stops
• Precision ground rack and pinion mechanism
• Adjustable wear plates for smooth, precise motion
• Optional digital travel display
• Friction brake

Each Unit Includes

• USB cable
