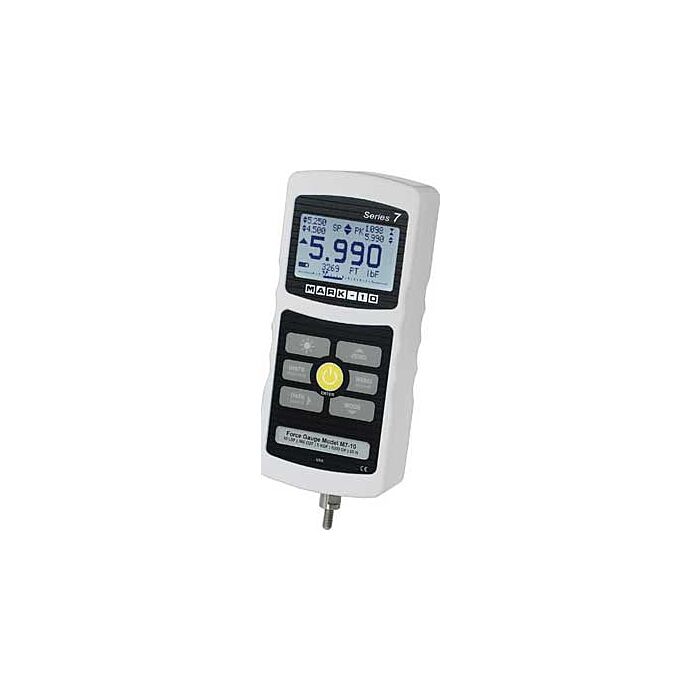

Mark-10 M7-025 Digital Force Gauge

Digital Force Gauge

Order #: M7-025

Mfg #: M7-025

Special Price $3,091.87 Regular Price $3,637.50

Availability: Ships in 3-4 weeks

Add Calibration

Qty

0.25 lb / 4 oz / 100 g / 1 N / 1000 mN
Ultra High Speed 14,000 Hz Sampling Rate Continuous Data Capture of up to 5,000 Data Points, at up to 14,000 Hz, Downloadable to a PC
Individual Data Point Memory for up to 5,000 Data Points, Downloadable to a PC
USB, RS-232, Mitutoyo, and Analog Outputs
Programmable Footswitch Command String
1st / 2nd Peak Detection
Sample Break Detection with Auto Functions, Including Stopping Movement Of a Mark- 10 Test Stand
Automatic Output / Data Storage/ Zeroing Upon Various Event Completions
5 Units of Measurement, Plus Coefficient of Friction, and User-Defined Unit with Configurable Name
Programmable Set Points, with Indicators and Outputs
Averaging Mode - Calculates Average Readings Over Time
External Trigger Mode - for Switch Contact Testing or Remotely Stopping Display Update
Password Protection, Configurable for Individual Keys And Calibration
3-Year Warranty
Made In USA
