Mark-10 M2-2 Digital Force Gauge, 2lb/1kg/10N Digital Force Gauge, 2lb/1kg/10N

Product Highlights

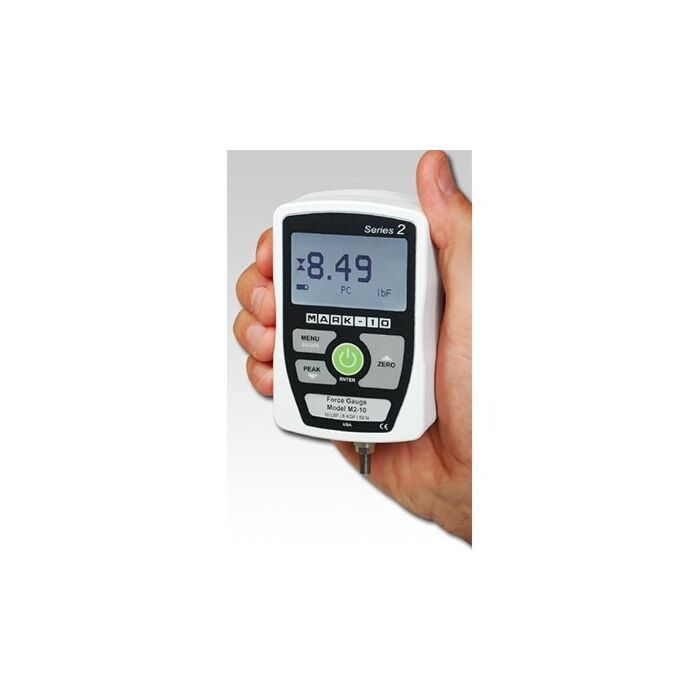

Series 2 digital force gauges are designed for basic tension and compression force testing applications up to 500 lbF (2,500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. A backlit graphic LCD displays the current, peak tension, or peak compression reading.

The gauges are overload protected to 200% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments. Series 2 gauges are directly compatible with Mark-10 test stands and grips.

• Calculates peak tension and compression values
• 3 selectable units of measurement
• Ultra-compact, ergonomic housing
• Configurable default measurement unit and mode
• 500 Hz sampling rate
• Large, backlit graphic display with auto-dimming
• Powered by rechargeable battery or AC adapter
• Reversible housing for alternate load cell orientation
• 2 x 0.002 lbF
• 1 x 0.001 kgF
• 10 x 0.01 N

Each Unit Includes

• Series 2 gauges now also include a cushioned carrying case, perfect for storing the AC adapter and USB
• USB data communication. Send or request peak or real-time force data via Mark-10's free MESUR Lite software, MESURgauge Plus, or a third-party application
