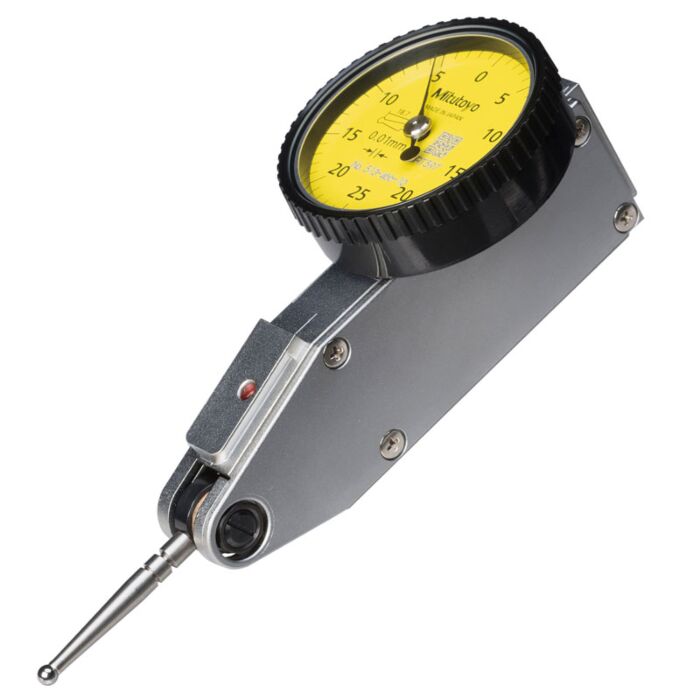

Mitutoyo 513-466-10E

Dial Indicator Basic Set Standard Yellow Dial

Order #: 513-466-10E

Mfg #: 513-466-10E

Special Price $249.78 Regular Price $271.50

Availability: Ships in 3-4 weeks

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Drastically enhanced durability, sensitivity and visibility
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the crystal

Range:	0.5 - 0.5mm
Graduation:	0.01 mm
Scale:	0-25-0
Measuring force:	0,01-0,3N
Carbide stylus tip Ø2 mm No.:	137557
Mass:	41g
Contact point:	Thread M 1.7 x 0.35
Delivered:	In box with clamping shaft Ø8.0 mm
Double scale spacing:	Yes
Compact type:	Yes
Anti-magnet:	Yes
Functions:	Basic set
Inch-Metric:	Metric
MPE any 10 scale divisions:	5
MPE measuring range:	5
Hysteresis:	3
Repeatability:	3

Mitutoyo 513-466-10E Datasheet
