Order #: CFP-SM-ADD
Mfg #: 4355565
Fluke Networks CFP-SM-ADD CertiFiber Pro Sm Modules Add On Kit
Order #: CFP-SM-ADD
Mfg #: 4355565
Each Unit Includes
- (2) CertiFiber Pro Singlemode OLTS Modules
- SC/LC SM TRC Kit
- TRC Carrying Case
- (2) LC/LC Adaptors
- Large Carry Case
- Statement of Calibration and Getting Started Guide.
- Fluke Networks VERSIV-BACKPK-STRP Backpack Strap for Versiv Large CaseBackpack Strap for Versiv Large Case
Order #: VERSIV-BACKPK-STRP
Mfg #: 4542655
Availability: Ships in 3-4 weeksSpecial Price $112.04 Regular Price $121.79 - Fluke Networks SRC-9-SCST Singlemode Test Reference Cord, test ST terminal fibers (SC/ST)Singlemode Test Reference Cord- test ST term. fibers (SC/ST)
Order #: SRC-9-SCST
Mfg #: 4364103
Availability:In stockSpecial Price $92.72 Regular Price $100.79 - Fluke Networks NFA-LC-SINGLE LC Interchangeable AdapterLC Interchangeable Adapter
Order #: NFA-LC-SINGLE
Mfg #: 3351399
Availability: Ships in 3-4 weeksSpecial Price $202.20 Regular Price $219.79 - Fluke Networks MRC-50-SCSC Multimode Test Reference Cord for testing SC terminated fiberMultimode Test Reference Cord for testing SC terminated fiber
Order #: MRC-50-SCSC
Mfg #: 4322626
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks MRC-625-EFC-SCSC Multimode Encircled Flux Cord for testing SC terminated fiberMultimode Encircled Flux Cord for testing SC terminated fiber
Order #: MRC-625-EFC-SCSC
Mfg #: 4320228
Availability: Ships in 3-4 weeksSpecial Price $255.01 Regular Price $277.19 - Fluke Networks ADP-LC/APC LC-APC Simplex AdapterLC-APC Simplex Adapter
Order #: ADP-LC/APC
Mfg #: 4500688
Availability: Ships in 3-4 weeksSpecial Price $44.34 Regular Price $46.19 - Fluke Networks NFA-SC-SINGLE SC Interchangeable AdapterSC Interchangeable Adapter
Order #: NFA-SC-SINGLE
Mfg #: 3351373
Availability: Ships in 3-4 weeksSpecial Price $202.20 Regular Price $219.79 - Fluke Networks MRC-50EFC-SCFCKIT EF Test Reference Cord Kit, 62.5 for Testing ST FibersEF TRC Kit 62.5 for Testing ST Fibers
Order #: MRC-50EFC-SCFCKIT
Mfg #: 4322746
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks VERSIV-SM-CASE Versiv Small Carry CaseVersiv Small Carry Case
Order #: VERSIV-SM-CASE
Mfg #: 4497182
Availability: Ships in 3-4 weeksSpecial Price $175.15 Regular Price $190.39 - Fluke Networks MRC-50-STST Multimode Test Reference Cord for testing SC terminated fiberMultimode Test Reference Cord for testing SC terminated fiber
Order #: MRC-50-STST
Mfg #: 4322659
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks MRC-50EFC-SCSCKIT Ef Test Reference Cord Kit 50 For Testing SC FibersEf TRC Kit 50 For Testing SC Fibers
Order #: MRC-50EFC-SCSCKIT
Mfg #: 4322705
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks NFA-E2K-SINGLE E2K Adapter For OLTS TestingE2K Adapter For OLTS Testing 1 Each
Order #: NFA-E2K-SINGLE
Mfg #: 4500068
Availability: Ships in 3-4 weeksSpecial Price $302.66 Regular Price $328.99 - Fluke Networks MRC-50-SCSC-0.3M MM 50UM Test Reference Cord, 0.3M, for OTDR Port (SC/SC)MM 50UM TRC 0.3M for OTDR Port (SC/SC)
Order #: MRC-50-SCSC-0.3M
Mfg #: 4496946
Availability: Ships in 3-4 weeksSpecial Price $109.46 Regular Price $118.99 - Fluke Networks SRC-9-SCE2KAPCKIT Singlemode Simplex Test Reference Cord, Sc/E2K Apc KitSinglemode Simplex Test Reference Cord Sc/E2K Apc Kit
Order #: SRC-9-SCE2KAPCKIT
Mfg #: 4335634
Availability: Ships in 3-4 weeksSpecial Price $984.01 Regular Price $1,069.59 - Fluke Networks SRC-9-SCSC-0.3M Singlemode 9 UM Test Reference Cord 0.3M Cord for OTDR Port (SC/SC)Singlemode 9 UM TRC 0.3M Cord for OTDR Port (SC/SC)
Order #: SRC-9-SCSC-0.3M
Mfg #: 4496968
Availability: Ships in 3-4 weeksSpecial Price $109.46 Regular Price $118.99 - Fluke Networks MRC-625-EFC-SCST Multimode Encircled Flux Cord for testing SC terminated fiberMultimode Encircled Flux Cord for testing SC terminated fiber
Order #: MRC-625-EFC-SCST
Mfg #: 4320255
Availability: Ships in 3-4 weeksSpecial Price $255.01 Regular Price $277.19 - Fluke Networks SRC-9-FCFC Singlemode Test Reference Cord, testing FC terminal fibers (FC/FC)Singlemode Test Reference Cord- testing FC term. fibers (FC/FC
Order #: SRC-9-FCFC
Mfg #: 4364132
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks SRC-9-SCFC Singlemode Test Reference Cord, 2M (Sc/Fc)Singlemode TRC 2M (Sc/Fc)
Order #: SRC-9-SCFC
Mfg #: 4364084
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks MRC-625EFC-SCSTKIT EF Test Reference Cord Kit 62.5 for Testing ST FibersEF TRC Kit 62.5 for Testing ST Fibers
Order #: MRC-625EFC-SCSTKIT
Mfg #: 4322754
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks MRC-625EFC-SCFCKIT EF Test Reference Cord Kit 62.5 For Testing FC FibersEF TRC Kit 62.5 For Testing FC Fibers
Order #: MRC-625EFC-SCFCKIT
Mfg #: 4322768
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks MRC-625-EFC-SCFC Multimode Encircled Flux Cord for testing SC terminated fiberMultimode Encircled Flux Cord for testing SC terminated fiber
Order #: MRC-625-EFC-SCFC
Mfg #: 4320243
Availability: Ships in 3-4 weeksSpecial Price $255.01 Regular Price $277.19 - Fluke Networks NFA-FC-SINGLE FC Test AdapterFC Test Adapter
Order #: NFA-FC-SINGLE
Mfg #: 3351364
Availability: Ships in 3-4 weeksSpecial Price $195.76 Regular Price $212.79 - Fluke Networks SRC-9-SCSCAPCKIT Singlemode Simplex Test Reference Cord SC/LC APC KitSinglemode Simplex Test Reference Cord SC/LC APC Kit
Order #: SRC-9-SCSCAPCKIT
Mfg #: 4335618
Availability: Ships in 3-4 weeksSpecial Price $302.66 Regular Price $328.99 - Fluke Networks Versiv BatteryVersiv Battery
Order #: VERSIV-BATTERY
Mfg #: 4345952
Availability: Ships in 3-4 weeksSpecial Price $659.44 Regular Price $716.79 - Fluke Networks MRC-625-FCFC Multimode Test Reference Cord, test SC terminal fibers (FC/FC)Multimode Test Reference Cord -test SC term. fibers (FC/FC)
Order #: MRC-625-FCFC
Mfg #: 4322680
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks MRC-625-STST Multimode Test Reference Cord, test SC terminal fibers (ST/ST)Multimode Test Reference Cord -test SC term. fibers (ST/ST)
Order #: MRC-625-STST
Mfg #: 4322698
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks MRC-625EFC-SCSCKIT Multimode EF Test Reference Cord Kit for 62.5 AM - 2m (4 SC/SC)Multimode EF TRC Kit for 62.5 AM - 2m (4 SC/SC)
Order #: MRC-625EFC-SCSCKIT
Mfg #: 4322722
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks NFA-STYLUS Stylus For Tfs TouchscreenStylus For Tfs Touchscreen
Order #: NFA-STYLUS
Mfg #: 4284646
Availability: Ships in 3-4 weeksSpecial Price $57.94 Regular Price $62.99 - Fluke Networks SRC-9-SCFC-KIT Singlemode Test Reference Cord Kit, 2M (2 SC/FC, 2 FC/FC)Singlemode TRC Kit 2M (2 SC/FC, 2 FC/FC)
Order #: SRC-9-SCFC-KIT
Mfg #: 4335586
Availability: Ships in 3-4 weeksSpecial Price $302.66 Regular Price $328.99 - Fluke Networks MRC-50-EFC-SCFC Multimode Encircled Flux Cord for testing SC terminated fiberMultimode Encircled Flux Cord for testing SC terminated fiber
Order #: MRC-50-EFC-SCFC
Mfg #: 4320204
Availability: Ships in 3-4 weeksSpecial Price $255.01 Regular Price $277.19 - Fluke Networks ADP-E2K/APC E2K-APC Simplex AdapterE2K-APC Simplex Adapter
Order #: ADP-E2K/APC
Mfg #: 4500707
Availability: Ships in 3-4 weeksSpecial Price $99.66 Regular Price $111.99 - Fluke Networks NFA-LC Test Adapters Set of 2Test Adapters Set of 2
Order #: NFA-LC
Mfg #: 2635934
Availability: Ships in 3-4 weeksSpecial Price $373.50 Regular Price $405.99 - Fluke Networks SRC-9-SCSC-KIT Singlemode Test Reference Cord Kit for testing SC terminated fibers (4 SC/SC)Singlemode Cord Kit for testing SC terminated fibers (4 SC/SC)
Order #: SRC-9-SCSC-KIT
Mfg #: 4334464
Availability: Ships in 3-4 weeksSpecial Price $302.66 Regular Price $328.99 - Fluke Networks VERSIV-TSET Versiv HeadphonesVersiv Headphones
Order #: VERSIV-TSET
Mfg #: 4329892
Availability: Ships in 3-4 weeksSpecial Price $95.29 Regular Price $103.59 - Fluke Networks NFA-FC FC Test Adapters set of 2FC Test Adapters set of 2
Order #: NFA-FC
Mfg #: 2635952
Availability: Ships in 3-4 weeksSpecial Price $361.91 Regular Price $393.39 - Fluke Networks MRC-625-SCSC Multimode Test Reference Cord for Testing SC Terminated FibersMultimode Test Reference Cord -test SC term. fibers (SC/SC)
Order #: MRC-625-SCSC
Mfg #: 4322667
Availability:In stockSpecial Price $65.59 Regular Price $100.79 - Fluke Networks MRC-50-FCFC Multimode Test Reference Cord for testing 50um SC terminal fiberMultimode Test Reference Cord for testing 50um SC term. fiber
Order #: MRC-50-FCFC
Mfg #: 4322644
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks NFA-ST-SINGLE ST Interchangeable AdapterST Interchangeable Adapter
Order #: NFA-ST-SINGLE
Mfg #: 3351386
Availability: Ships in 3-4 weeksSpecial Price $195.76 Regular Price $212.79 - Fluke Networks VERSIV-STRP Versiv Strap KitVersiv Strap Kit
Order #: VERSIV-STRP
Mfg #: 4345976
Availability: Ships in 3-4 weeksSpecial Price $105.60 Regular Price $114.79 - Fluke Networks VERSIV-CASE3 Versiv Hardsided CaseVersiv Hardsided Case
Order #: VERSIV-CASE3
Mfg #: 4330606
Availability: Ships in 3-4 weeksSpecial Price $1,835.38 Regular Price $1,835.39 - Fluke Networks VERSIV-STND Versiv Demo StandVersiv Demo Stand
Order #: VERSIV-STND
Mfg #: 4345983
Availability: Ships in 3-4 weeksSpecial Price $122.34 Regular Price $132.99 - Fluke Networks MRC-50-EFC-SCSC Multimode EF Test Reference Cord, 2M, 50Um(Sc/Sc)Multimode EF TRC 2M 50Um(Sc/Sc)
Order #: MRC-50-EFC-SCSC
Mfg #: 4320187
Availability: Ships in 3-4 weeksSpecial Price $255.01 Regular Price $277.19 - Fluke Networks SRC-9-SCST-KIT Singlemode Cord Kit for testing ST terminal fibers (SC/ST, ST/ST)Singlemode Cord Kit for testing ST term. fibers (SC/ST,ST/ST)
Order #: SRC-9-SCST-KIT
Mfg #: 4335573
Availability: Ships in 3-4 weeksSpecial Price $302.66 Regular Price $328.99 - Fluke Networks MRC-50EFC-SCSTKIT Multimode Encircled Flux Compliant Test Reference Cord KitMultimode Encircled Flux Compliant Test Ref Cord Kit
Order #: MRC-50EFC-SCSTKIT
Mfg #: 4322731
Availability: Ships in 3-4 weeksSpecial Price $587.31 Regular Price $638.39 - Fluke Networks SRC-9-STST Singlemode Test Reference Cord (ST/ST)Singlemode Test Reference Cord (ST/ST)
Order #: SRC-9-STST
Mfg #: 4364144
Availability: Ships in 3-4 weeksSpecial Price $92.72 Regular Price $100.79 - Fluke Networks NFA-SC Test Adapters set of 2Test Adapters set of 2
Order #: NFA-SC
Mfg #: 2635929
Availability: Ships in 3-4 weeksSpecial Price $373.50 Regular Price $405.99 - Fluke Networks NFA-ST Test Adapters set of 2Test Adapters set of 2
Order #: NFA-ST
Mfg #: 2635941
Availability: Ships in 3-4 weeksSpecial Price $361.91 Regular Price $393.39
Specifications
Power Meter Specifications | |
Input Connector | Interchangeable connector adapter (LC standard, SC, ST and FC optional) |
Detector Type | InGaAs |
Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm |
Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) |
Power Measurement Uncertainty1,2 | < +/- 5% +/- 32 pW |
Measurement Linearity3 | < ± 0.1 dB |
Re-calibration Period | 1 year |
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 _W (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 _m and NA = 0.14 for 9/125 _m. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5 minute warm-up. |
Loss/Length Specifications | ||
Specification | CertiFiber Pro Multimode Modules | CertiFiber Pro Singlemode Modules |
Testing Speeds (excludes referencing times) | Smart Remote mode: < 3 seconds (2 wavelengths, one direction, auto wavelength detection) Far End Source mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) Loopback mode: ≤ 2 seconds (2 wavelengths, one direction auto wavelength detection) | |
Input/Output Connectors | Interchangeable connector adapter (LC standard, SC, ST and FC optional) | |
Launch Condition1,2 | Encircled Flux compliant to TIA-526-14-B, ISO/IEC 14763-3 and IEC 61280-4-1 | |
Fiber Types Tested | 50/125 µm or 62.5/125 µm | singlemode |
Source Type and Wavelengths | LED source 850 nm ± 30 nm 1300 nm ± 20 nm | Fabry-Perot laser diode 1310 nm ± 20 nm 1550 nm ± 30 nm |
Maximum Length Measurement | 12 km | 130 km |
Length Measurement Accuracy | ± 1.5 m plus ± 1 % of length | ± 1.5 m plus ± 1 % of length |
Output Power (Nominal) | ≥ -24 dBm with EF-TRC | ≥ -4 dBm |
Output Power Stability3 | ± 0.05 dB over 8 hours ± 0.03 dB over 15 minutes | ± 0.1 dB over 8 hours ± 0.08 dB over 15 minutes |
1. At the output of the EF-TRC 2. Variations between EF measurement equipment may occur but EF compliance can be expected with a 95% confidence factor 3. Relative to power level after 15 minute warm up – at constant temperature |
Loss/Length Specifications (continued) | ||
Source Wavelengths | 850 nm, 1300 nm, 1310 nm, 1550 nm | |
Power Measurement Range | 0 dBm to -65 dBm (850 nm) 0 dBm to -70 dBm (all other wavelengths) | |
Power Measurement Uncertainty1, 2 | < +/- 5% +/- 32 pW | |
Measurement Linearity3 | < ± 0.1 dB | |
Re-calibration Period | 1 year | |
1. +/- 100 pW at 850 nm 2. Under the following conditions: Power level 100 _W (-10 dBm), continuous wave (CW) for absolute power at 850 nm and 1310 nm. Divergent beam, NA = 0.20 for 50/125 _m and NA = 0.14 for 9/125 _m. Ambient temperature 23° ± 1°C. SC/UPC connector with ceramic ferrule. After a 5 minute warm-up. Traceable to NIST. 3. -3 dBm to -55 dBm at 850 nm and 1310 nm. Ambient temperature 23° ± 1°C. After a 5-minute warm-up. |
Selected Specifications | |
Visual Fault Locator (VFL) | |
Title | Requirement |
Output Power | >-5 dBm <0 dBm SMF-28 singlemode fiber Continuous wave SC/UPC connector |
Operating Wavelength | 650 nm nominal |
Output Modes | Continuous wave Pulsed mode (2 Hz to 3 Hz blink frequency) |
Connector Adapter | 2.5 mm universal |
Laser Safety | Class II CDRH Over operating temperature range |
Environmental Specifications | |
Title | Requirement |
Operating Temperature | -18° C to 45° C |
Storage Temperature | -30° C to +60° C |
Operating Relative Humidity % RH without condensation | 0 % to 90 %, 32 °F to 95 °F (0° C to 35° C) 0 % to 70 %, 95 °F to 113 °F (35° C to 45° C) |
Vibration | Random, 2 g, 5 Hz-500 Hz |
Shock | 1 m drop test with and without module and adapters |
Safety | CSA C22.2 No. 1010.1: 1992 EN 61010-1 1st Edition + Amendments 1, 2 |
Pollution Degree | 2 |
Altitude | Operating: 4,000 m; storage: 12,000 m |
EMC | EN 61326–1 |
-

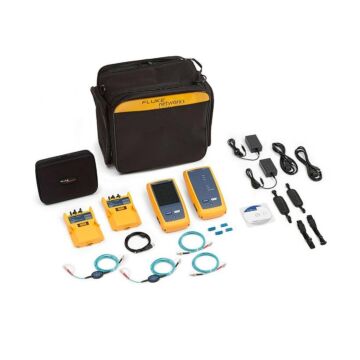

Fluke Networks CFP-100-M CertiFiber PRO 2 Multimode OLTS with Wi-FiCertiFiber PRO 2 Multimode OLTS with Wi-FiSpecial Price $14,172.18 Regular Price $14,172.19
-

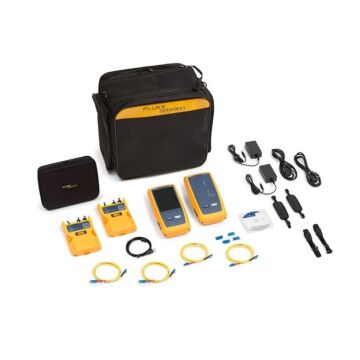

Fluke Networks CFP-100-S-W CertiFiber Pro 2 Singlemode OLTS with Wi-FiCertiFiber Pro 2 Singlemode OLTS with Wi-FiSpecial Price $16,217.58 Regular Price $16,217.59
-

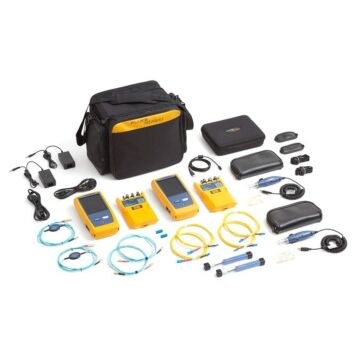

Fluke Networks CFP-100-QI/GLD CertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Year SupportCertiFiber Pro 2 Quad OLTS, Inspection, Wi-Fi, 1 Yr SupportSpecial Price $32,324.58 Regular Price $32,324.59
-
Fluke Networks CFP-MM-ADD CertiFiber Pro Singlemode Modules Add on KitCertiFiber Pro Singlemode Modules Add on KitSpecial Price $9,524.18 Regular Price $9,524.19
-
Fluke Networks CFP-SM MOD CertiFiber Pro Singlemode Module OLTS ReplacementCertiFiber Pro Singlemode Module OLTS ReplacementSpecial Price $8,317.38 Regular Price $8,317.39
-
Fluke Networks CFP-QUAD MOD CertiFiber Pro Quad Replacement ModuleCertiFiber Pro Quad Replacement ModuleSpecial Price $10,504.18 Regular Price $10,504.19
-

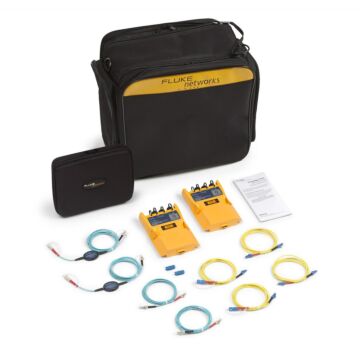

Fluke Networks CFP-Q-ADD CertiFiber Pro QuadCertiFiber Pro QuadSpecial Price $17,681.98 Regular Price $17,681.99
-

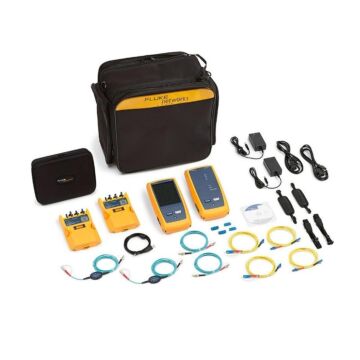

Fluke Networks CFP-100-Q/GLD CertiFiber Pro 2 Quad OLTS with Wi-Fi and 1 Year Gold SupportCertiFiber Pro 2 Quad OLTS with Wi-Fi and 1 Year Gold SupportSpecial Price $24,532.18 Regular Price $24,532.19
-
