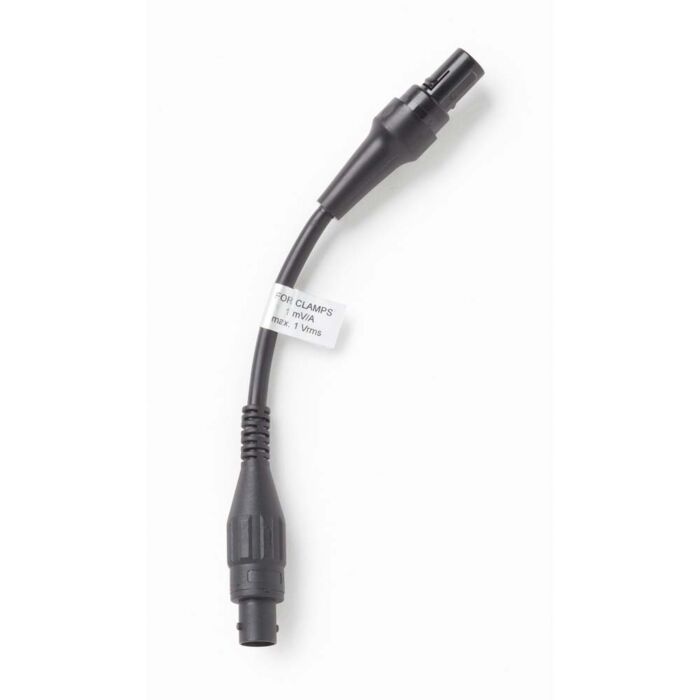

Fluke 17XX-CLAMP-ADPT-1V 17XX BNC Adapter for Clamps 1V

Product Highlights

Compatible with current clamps featuring an output maximum of 1 V AC/DC, this BNC adapter allows the connection of AC or DC clamps to 17XX multimeters. In addition, this adapter consists of a cable with a plug that fits 17XX multimeters and a female BNC connector, allowing other current clamps connections with mV/A outputs.

• 7" (18 cm) long cable with 17XX connector and BNC connector
• For current clamps featuring a maximum output of 1 V
• Scale factor set in the instrument as mV/A
• mV/A conversion for 17XX instruments
• Current measurement using iron cored current transformers
• Enables DC current measurements
• DC power with instrument
• Female BNC connector
• Internal conductor protection
• Label indicating adapter type
• Protects your past investments in previously purchased current clamps from Fluke or other manufacturers
• Gives the ability to use specialty current clamps
• CAT IV, 600V and CATIII 1000 V rating according to IEC61010-2-30 appendix 2
• Allows users to connect to a wider range or current clamps including measurement of DC current for 177X products
• Used to connect three-phase measurement equipment and in any electrical panel for connection of measurement equipment

Applications

• Users who need DC current measurements (output of solar strings, inputs to DC-AC inverters, battery testing etc.)
• Users who aren't satisfied by the existing range of 17XX current clamps
• Users who would prefer to use current clamps they already own
• Consulting engineers and equipment manufacturers (panel builders) advising users on equipment installation
• Facility managers
• Safety, design, and senior electrical engineers
• Electrical contractors and technicians
• Electricians
