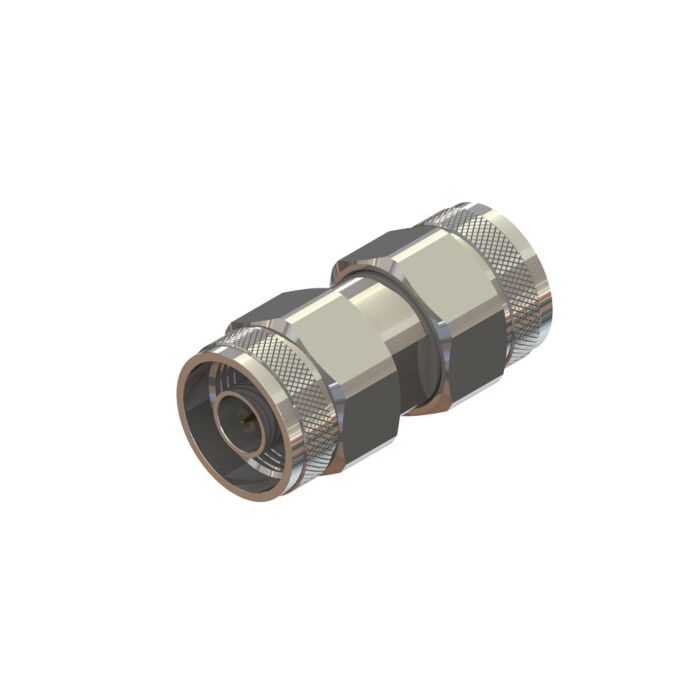

Cal Test Electronics CT3351A
N-Type male to male Adapter
Order #: CT3351A
Mfg #: CT3351A
$68.60
Cal Test Electronics CT3351A
N-Type male to male Adapter
Order #: CT3351A
Mfg #: CT3351A
Product Highlights
The CT3351A in an Instrument Grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
- Accuracy
- Low VSWR
- Flat frequency response
- Repeatability
- Cost effectiveness
| Connector Grade | Instrument |
| Body and Coupling Nut | Brass, White Bronze Plated |
| Center Contact | BeCu, Gold Plated |
| Dielectric | PTFE |
| Impedance | 50 Ω |
| Frequency | DC to 9 GHz |
| Insertion Loss | 0.05 dB @ 9 GHz |
| Dielectric Withstanding Voltage | 1,000 V Max @ Sea Level |
| Insulation Resistance | 5,000 MΩ Min |
| VSWR |
|
| Temperature Range | -55°C to + 165°C |
| RoHS 2(2011/65/EU) | Compliant |
| REACH | Compliant |
