Dionamix L-3000-SO/BP/AS/CO/DAD

Product Highlights

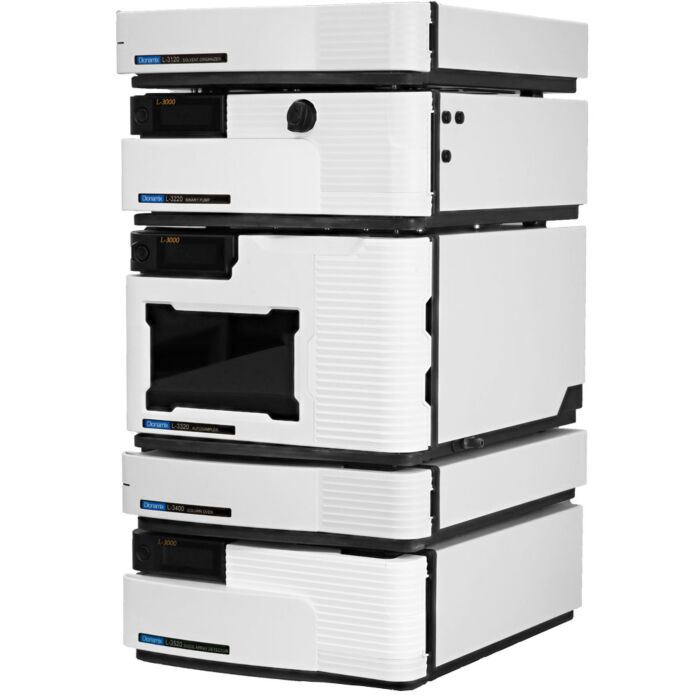

The Dionamix L3000 HPLC is a moduler high performance Binary chromatography system with two dual stage high pressure pumps that deliver very accurate flow rates from 0.1ml/min to 10ml/min at very stable pressures up to 9000 psi (620 bar), the higher pressures and wide flow rate capability reduces test time while still achieving great peak separation. The L3220 binary pump employs a dual stage high pressure pump design with dampening and mixing control to acheive accurate gradient tests typically faster than standard HPLC systems. The L3000 binary system is able to reproduce complex binary gradient tables very accurately and with a high degree of repeatability. The Dionamix L3520 Diode Array Detector with high sampling rates achieve high sensitivity, low noise chromatograph spectrums. The Dionamix Binary system can increase productivity and efficiency in routine lab testing and production quality control applications.

Key Features

• Binary system with two dual stage pumps deliver high precision gradient elution
• Solvent organizer with peristaltic wash pump and 2 channel degasser
• Multi vial Autosampler with precision pickup and unique inner and outer needle wash to minimize risk of cross contamination
• Precision temperature controlled column chamber
• Diode Array Detector offering high sensitivity detector with high resolution 3D graph showing Absorbance vs. Retention Time and Wavelength

Key Performance Specifications

• Binary Pump with up to 9000 PSI (620 bar) at flow rates from 0.000 mL/min
