Dionamix L-3000-QP/AS/CO/DAD

Product highlights

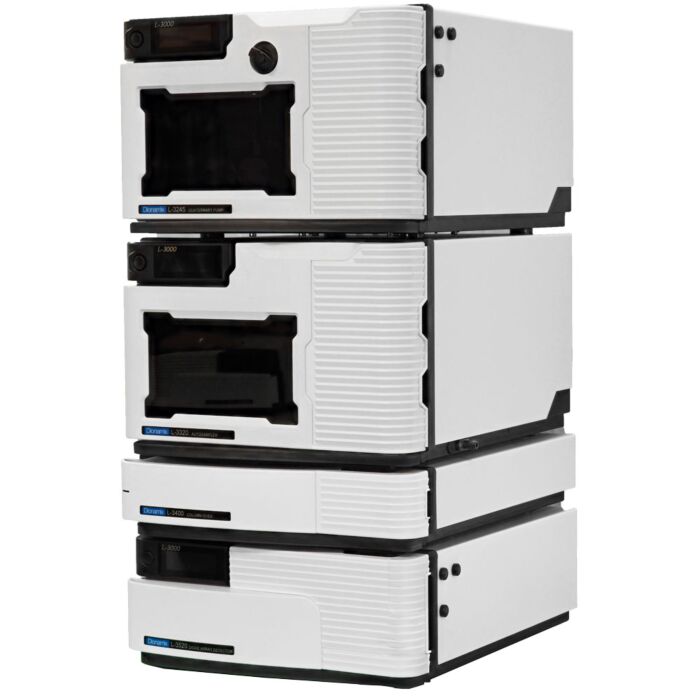

The Dionamix L3000 HPLC is a modular high performance chromatography system that has the benefit of great flexibility to meet the ever changing analytical method needs in Quality Control or Research applications. The L3245 quaternary pump employs a dual stage, high pressure pump design with 4 precision tuned solid state valves to deliver accurate flow rates at proportional mix volumes. The L3000 quaternary system is able to reproduce complex gradient tables very accurately and with a high degree of repeatability. The Dionamix L3520 Diode Array Detector with high sampling rates achieve high sensitivity, low noise chromatograph spectrum.

Key Features

• Quaternary system with built in degasser and dual stage pump to deliver high precision gradient elution
• Multi vial Autosampler with precision pickup and unique inner and outer needle wash to minimize risk of cross contamination
• Precision temperature controlled column chamber
• Diode Array Detector offering high sensitivity detector with high resolution 3D graph showing Absorbance vs. Retention Time and Wavelength

Key Performance Specifications

• Quaternary Pump with up to 9000 PSI (620 bar) at flow rates from 0.000 mL/min
