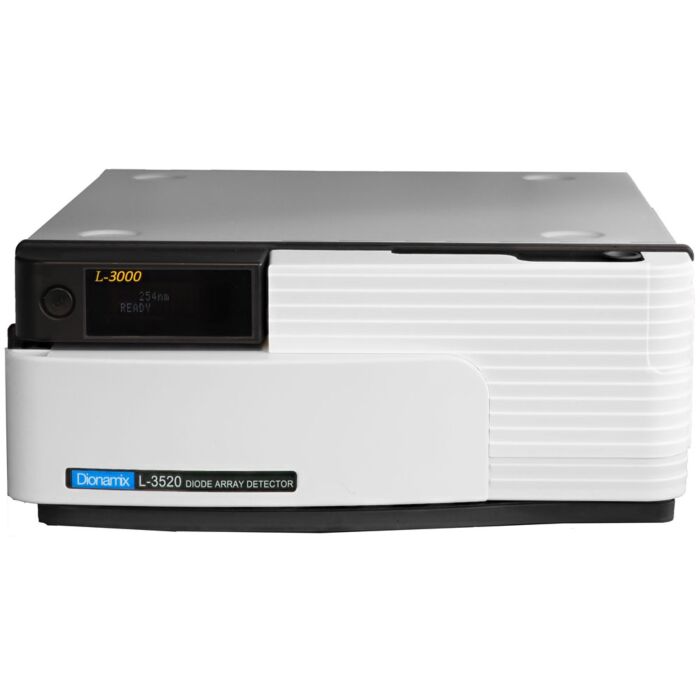

Dionamix L-3520
Diode Array Detector wavelength range 190 nm to 640 nm
Order #: L-3520
Mfg #: 3021003520
$22,393.00
Dionamix L-3520
Diode Array Detector wavelength range 190 nm to 640 nm
Order #: L-3520
Mfg #: 3021003520
$22,393.00
Availability: Ships in 3-4 weeks
Product Highlights
The polychromatic light passing through the sample contained in the flow cell is absorbed by the compounds in the sample. The light output from the flow cell irradiates the diode array where the light intensity per nanometer wavelength is measured.
The L-3520 Diode Array Detector (DAD) responds to ultraviolet and visible light with wavelengths from 190nm to 640nm. The L-3520 uses a Deuterium light source, condenser and filter, flow cell, monochromator and 1024 Diode Array Detector with high sampling rates to achieve high sensitivity, low noise chromatograph spectrum.
-
Dionamix 2010003743C-type inlet check valve sleeve L-32XX PumpsOrder #: 2010003743
Mfg #: 2010003743
Availability: Ships in 3-4 weeks$68.60
| Specification | ||
| Detection Type | 1024 Diode Array | |
| Light Source | Deuterium Lamp | |
| Wavelength Range | 190nm to 640nm | |
| Noise | ±1.5 x 10-5 AU (JJG) | ±0.6 x 10-5 AU (ASTM) at 254/4nm |
| Drift | 0.5 x 10-3 AU/Hr at 254/4nm | |
| Absorbance Linear Range | >2.0 AU (5%) at 254nm | |
| Wavelength Accuracy | ±1nm | |
| Spectral Resolution | 0.6nm/pixel | |
| Signal Data Sample Rate | 12 Channel: 100 Hz | Full Spectrum: 100 Hz |
| Spectrum Data Sample Rate | Up to 100 Hz | |
| Flow Cell | 10mm Optical Path, 12 µL volume, 1200 psi maximum pressure | |
| Control & Data Assessment | Dionamix Ultra | Chrom HPLC Workstation |
| Communication | LAN, USB Control Area Network (CAN) |
| Specification | |
| Weight | 12.6 kg (27.8 lbs) |
| Dimension (LxWxH) | 462 x 367 x 143 mm18.2 x 14.5 x 5.7 inches |
| Voltage | 110 VAC rms - 240 VAC rms |
| Frequency | 50 Hz - 60 Hz |
| Power | 90 W max |
| Operating Temperature | 5°C - 35°C (Temperature shift less than 2°C/hr)41°F - 95°F |
| Operating Humidity | 20% RH - 80% RH |
