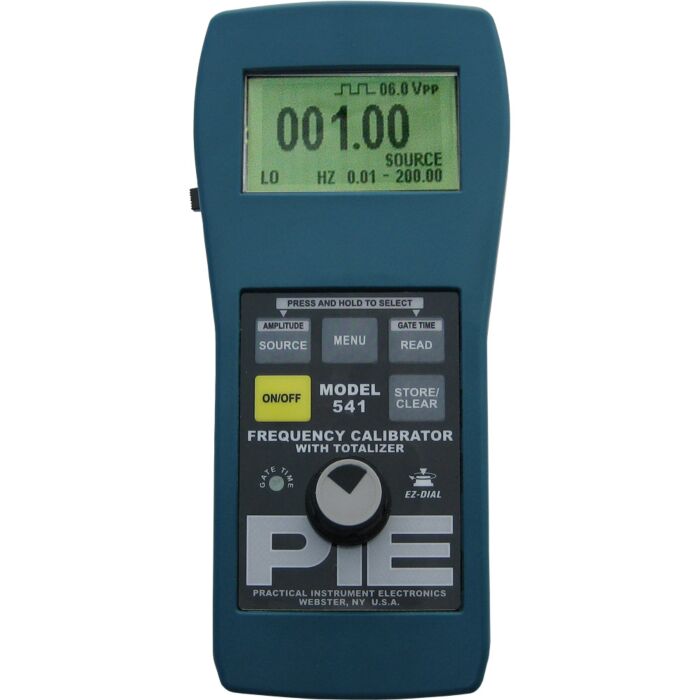

PIE 541

Product Highlights

• Accuracy: ± 0.005% of range
• 5 ranges from 1CPH to 20.000KHz for source and read
• Totalize inputs/outputs from 1 to 99999 in 1.0 to 100.0 minutes
• Read a wide range of frequencies and waveforms from 50mV to 120V peak.
• Source sine and square waves, zero based, or zero crossing.
• Adjustable amplitude from 100mV to 12V peak-to-peak.
• Gate trigger LED flashes in synch with the output frequency. This allows easy adjustment of the attenuation for proper gate triggering.
• EZ-Dial™ knob easily adjust output
• Pressing down and turning will select a faster dialing speed
• EZ-Check™ switch for 0% and 100% span adjustments
• Store new EZ-Check™ values by pressing the EZ-Dial™ knob
• Uses a standard 9V Alkaline Battery
• Superior battery life of 45 hours under typical continuous usage
• Easy access to battery compartment
• Lightweight, Rugged and Reliable
• Small, tough and protected to 60V
