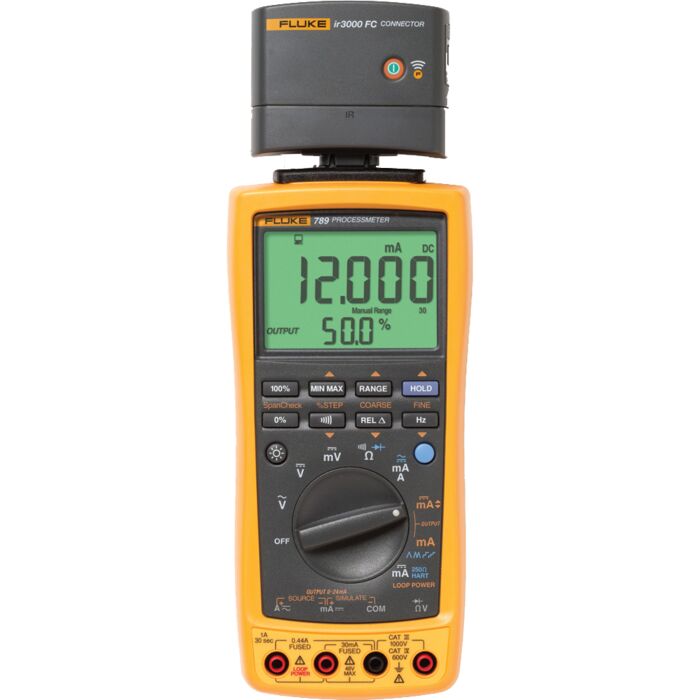

Fluke 789/IR3000 789 Process Meter and IR3000 adapter Bundle Package
789 Process Meter and IR3000 adapter Bundle Package
Order #: 789/IR3000
Mfg #: 4740393
$1,891.75
Fluke 789/IR3000 789 Process Meter and IR3000 adapter Bundle Package
789 Process Meter and IR3000 adapter Bundle Package
Order #: 789/IR3000
Mfg #: 4740393
$1,891.75
Buy a Fluke-789 ProcessMeter and get a free Fluke Connect compatible ir3000FC communication adapter, $100 value FREE.
Availability:
In stock
Bundle Highlights
- Use the Fluke-789 ProcessMeter with the Fluke Connects smart phone application to log measurements to your smart phone
- Remotely view changing sourced 4-20 mA signals from the Fluke-789 with the Smart phone App and compare to the control system HMI (Human Machine Interface display)
Fluke 789 Features
- 24 V loop power supply
- HART mode setting with loop power (adds 250 ohm resistor)
- 100% larger dual display
- 1200 ohm drive capability on mA source
- Enhanced backlight with two brightness settings
- Improved battery power with four AA batteries
- 0-100% mA Span Check buttons to toggle between 4 and 20 mA
- Infrared I/O serial port compatible with FlukeView Forms
- V 2.1 Software (available Feb. 2003)
- 5 V dc measurement capability on the 4 V dc range for precise 1-5 V measurements
- Externally accessible fuses for easy replacement
- DMM designed to meet 1000 V IEC 1010 Cat III standards
- Precision 1000 V, 440 mA digital multimeter
- Measure ac and dc volts
- AC and dc voltage accuracy: 0.05 % dc current accuracy, 1 uA resolution to 30 mA
- Simultaneous mA and % of scale readout
- True-rms ac voltage measurement
- Frequency measurement to 20 kHz
- Min/Max/Average/Hold/Relative modes
- Diode Test and Continuity Beeper
- 20 mA dc current source / loop calibrator / simulator
- Simultaneous mA and % of scale readout
- Manual Step (100 %, 25 %, Coarse, Fine) plus Auto Step and Auto Ramp
- Externally accessible battery for easy battery changes V overload protection on V, ohms, frequency, mA (backed-up by 440 mA 1000 V fuse)
- Process Meter
Fluke 789 Includes
- TL71 Premium Test Lead Set
- AC72 Alligator Clips
- Four AA alkaline batteries (installed)
- Users Manual
- Quick Reference Guide
Fluke ir3000FC Features
Connect your Fluke test tool with the ir3000 FC connector and get all the benefits of the Fluke Connect™ app. Fluke Connect ir3000 FC Connector allows you to wirelessly transfer data from your existing Fluke Tools to your smart phone.
- Fits over the IR port of your existing Fluke Tools
- Upgradeable by USB
- Immediately enables you to graph, save and share the tool's reading with your team from your smart phone
-
Fluke Toolpak Meter Hanging KitMeter Hanging KitOrder #: TPAK80-4
Mfg #: 1281997
Availability:In stockSpecial Price $62.74 Regular Price $74.79 -
Fluke TL175 TwistGuard Test LeadsTwistGuard Test Leads
Order #: TL175
Mfg #: 3521976
Availability:In stockSpecial Price $51.91 Regular Price $62.55 -
Fluke TL220 Industrial Test Lead Set for All Fluke MetersIndustrial Test Lead Set for All Fluke Meters
Order #: TL20
Mfg #: 2003625
Availability:In stockSpecial Price $124.15 Regular Price $149.59 -
Fluke C125 Case for Fluke 120 Series ScopeMetersCase for Fluke 120 Series ScopeMeters
Order #: C125
Mfg #: 646858
Availability:In stockSpecial Price $67.77 Regular Price $76.15 -
Fluke I1010 AC/DC Clamp-on Current Probe 600A/1000AAC/DC Clamp-on Current Probe 600A/1000A
Order #: I-1010
Mfg #: 617735
Availability:In stockSpecial Price $603.89 Regular Price $727.59 -
Fluke I410 AC/DC Clamp-on Current Probe, 400AAC/DC Clamp-on Current Probe, 400A
Order #: I-410
Mfg #: 617727
Availability:In stockSpecial Price $376.53 Regular Price $448.79 -
Fluke TP1 Slim Reach Flat Blade Probe for Fluke Lead SetsSlim Reach Flat Blade Probe for Fluke Lead Sets
Order #: TP1E
Mfg #: 650887
Availability:In stockSpecial Price $33.85 Regular Price $40.79 -
Fluke TP220 SureGrip Industrial Test ProbesSureGrip Industrial Test Probes
Order #: TP20
Mfg #: 1670056
Availability: Ships in 3-4 weeksSpecial Price $36.11 Regular Price $43.51 -
Fluke FVF-BASIC Flukeview Forms Basic Software with CableFlukeview Forms Basic Software with Cable
Order #: FVF-BASIC
Mfg #: 2396957
Availability: Ships in 3-4 weeksSpecial Price $258.48 Regular Price $311.43 -
Fluke 80TK Thermocouple ModuleThermocouple Module
Order #: 80TK
Mfg #: 736736
Availability:In stockSpecial Price $237.03 Regular Price $285.59
| Fluke 789 Specifications | ||
| Current measurement | Range | 0-1 A AC or DC |
| Resolution | 1 mA | |
| Accuracy | 0.2% + 2 LSD (DC) | |
| Range | 0-30 mA | |
| Resolution | 0.001 mA | |
| Accuracy | 0.05% + 2 lSD | |
| Current sourcing | Range | 0-20 mA or 4-20 mA |
| Resolution | 0.05% of span | |
| Drive capability | 24 V Compliance or 1200 Ω @ 20 mA | |
| Frequency | to 19.999 kHz, 0.005% + 1 LSD | |
| Continuity | Beeps for resistance < 100 Ω | |
| Voltage measurement | Range | 0-1000 V AC (true-rms) or DC |
| Resolution | 0.1 mV to 1.0 V | |
| Accuracy | 0.1% Rdg + 1 LSD (VDC) | |
| Resistance measurement | to 40 MΩ, 0.2% + 1 LSD | |
| Diode test | 2.0 V shoes diode voltage drop | |
| Display current and % of span | Yes | |
| Auto Step, Auto Ramp | Yes | |
| Environmental Specifications | ||
| Operating temperature | -20°C to 55°C | |
| Storage temperature | -40°C to 60°C | |
| Humidity (without condensation) | 95% up to 30°C | |
| 75% up to 40°C | ||
| 45% up to 50°C | ||
| 35% up to 55°C | ||
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18°C or > 28°C) | |
| Safety Specifications | ||
| Electrical safety | Designed in accordance with IEC 1010-1, ANSI/ISA S82.01-1994 and CAN/CSA C22.2 No 1010.1-92 | |
| Overvoltage category | IEC 1010-1 CAT III 1000 V | |
| IEC 1010-1 CAT IV 600 V | ||
| Maximum voltage | 1000 V RMS | |
| Mechanical and General Specifications | ||
| Size (H x W x L) | 50 x 100 x 203 mm (1.25 x 3.41 x 7.35 in) | |
| Weight | 610 g (1.6 lbs) | |
| Batteries | 4 AA alkaline batteries | |
| Warranty | 3 years | |
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 20 mA) | |
| Shock and vibration | Random, 2 g, 5-500 Hz | |
| 1 meter drop test | ||
