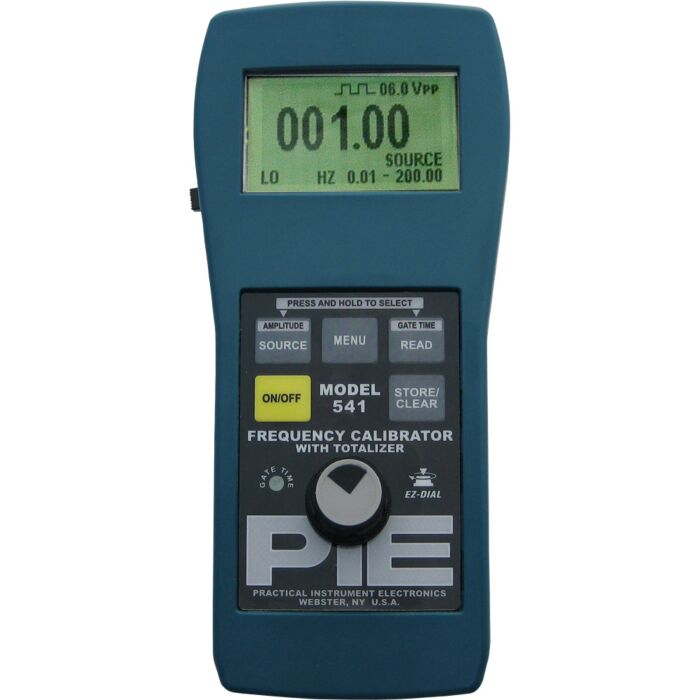

PIE 541-BNC

Freq.Calibrator w/NIST Cert. Carrying Case,BNC Connector

Order #: PIE 541-BNC

Mfg #: PIE 541-BNC

$3,330.60

The Model 541 comes with an LED indicator showing gate time for easy trigger level adjustment

Availability: Ships in 3-4 weeks

New Purchase Calibration

None

Calibration without Data + $395.96

Calibration with Data + $541.20

Accredited Calibration with Data and Uncertainties + $689.49

Add Calibration

Qty

Accuracy: ± 0.005% of range
5 ranges from 1CPH to 20.000KHz for source and read
Totalize inputs/outputs from 1 to 99999 in 1.0 to 100.0 minutes
Read a wide range of frequencies and waveforms from 50mV to 120V peak
Source sine and square waves, zero based, or zero crossing
Adjustable amplitude from 100mV to 12V peak-to-peak
Gate trigger LED flashes in synch with the output frequency. This allows easy adjustment of the attenuation for proper gate triggering
EZ-Dial™ knob easily adjust output by 1
Pressing down and turning will select a faster dialing speed
EZ-Check™ switch for 0% and 100% span adjustments
Store new EZ-Check™ values by pressing the EZ-Dial™ knob
Uses a standard 9V Alkaline Battery
Superior battery life of 45 hours under typical continuous usage
Easy access to battery compartment
Lightweight, Rugged and Reliable
Small, tough and protected to 60V
