PIE 334PLUS

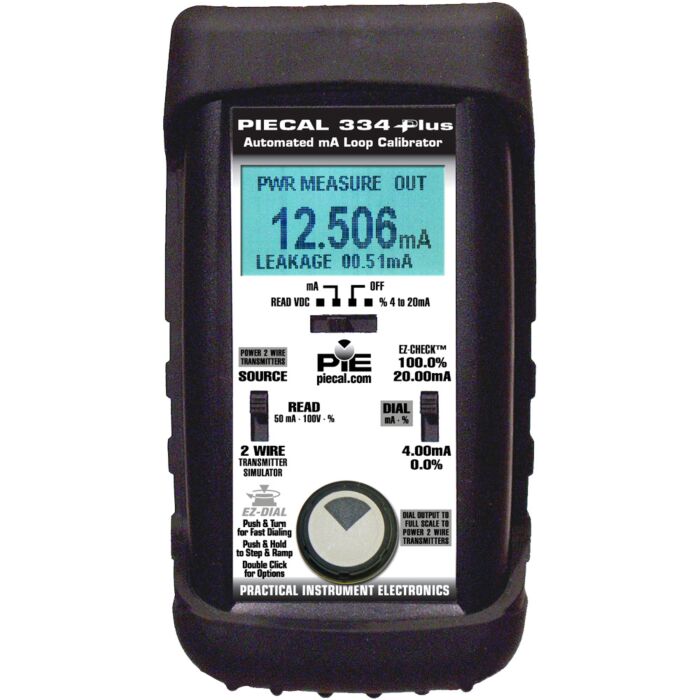

Automated 4-20mA Loop Calibrator with NIST Cert,Boot

Order #: PIE 334PLUS

Mfg #: PIE 334PLUS

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,813.00

PIE 334PLUS

Automated 4-20mA Loop Calibrator with NIST Cert,Boot

Order #: PIE 334PLUS

Mfg #: PIE 334PLUS

$1,813.00
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

Do More with the PIECAL 334Plus!

  • Calibrate Milliamp Instruments
  • Source and Read 0.000 to 24.000 mA & -25.0 to 125.0% of 4-20 mA
  • Read -99.99 to 99.99 V
  • Read Loop currents up to 52.000 mA
  • Simulate 2-Wire Transmitter, Power & Read Transmitters
  • Menu Selectable 250 Ohm resistor for HART compatibility
  • Calibrate with Accuracy
  • Source mode accurate to .025% of Span at 4&20 mA
  • Easy-to-Read Backlit Display
  • Locate Loop Current Leakages
  • Current Leak Detection

Automatic indication of Loop Current and Leakage Current. Measure ground current leakage from faulty wiring, flooded conduit and corrosion bridges. Leakage typically appears as a Zero Shift and helps you decide if the transmitter needs calibration or if there is a problem in the loop wiring.

  • Faster Calibrations
  • Three output EZ-CHECK switch
  • 2 speed EZ-DIAL
  • Stepping & Ramping
  • Includes Rubber Boot & Test Leads
