BrandTech Scientific 20751801

Exhaust vapor condenser for VACUUPURE screw pump

Order #: 20751801

Mfg #: 20751801

$1,253.00

Availability: Ships in 3-4 weeks

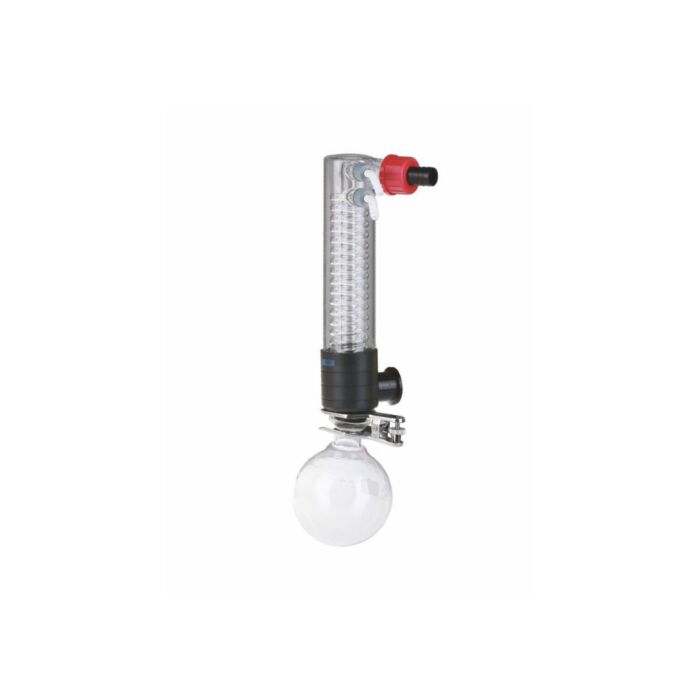

Exhaust vapor condenser EK 600 with round bottom flask 500 ml, with KF DN 25, for VACUUPURE

Technical data and graphs

Ambient Temp., Upper Limit (°C)	40 °C
Ambient Temp., Lower Limit (°C)	10 °C
Dimension L (mm)	118 mm
Dimension B (mm)	142 mm
Dimension H (mm)	412 mm
Outlet Connection	Small flange KF DN 25
Inlet Connection	Schlauchwelle DN 19 mm
For VACUUBRAND Pumps	VACUUPURE
Volume Catchpot	500 ml
Items Supplied	Exhaust vapor condenser with KF DN 25 for VACUUPURE
