BrandTech Scientific 20751802
Inlet separator, bottom flask, 500 ml, for VACUU·PURE Pumps
Order #: 20751802
Mfg #: 20751802
$1,050.00
BrandTech Scientific 20751802
Inlet separator, bottom flask, 500 ml, for VACUU·PURE Pumps
Order #: 20751802
Mfg #: 20751802
Product Highlights

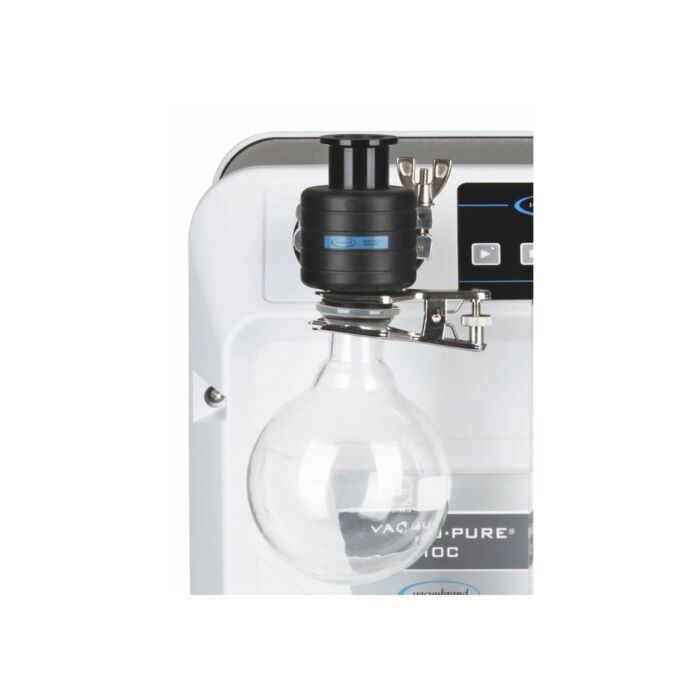

Inlet separator AK with round bottom flask 500 ml, with KF DN 25, for VACUUPURE
Inlet separator for VACUUPURE Screw pumps. Inlet with small flange KF DN 25 and hose nozzle DN 15 mm. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of glas with good chemical resistance.
- For VACUUPURE Screw Pumps
- Direct mounting at the inlet, compact, and leak-tight
- High conductance
- Direct visibility of condensate through the coated round bottom flask
- Easy draining of condensate
Technical data and graphs
| Ambient Temp., Upper Limit (°C) | 40 °C |
| Ambient Temp., Lower Limit (°C) | 10 °C |
| Dimension L (mm) | 106 mm |
| Dimension B (mm) | 121 mm |
| Dimension H (mm) | 275 mm |
| Outlet Connection | Small flange KF DN 25 |
| Inlet Connection | Small flange KF DN 25 |
| For VACUUBRAND Pumps | ME 16C NT, MD 12C NT, MV 10C NT |
| Volume Catchpot | 500 ml |
| Items Supplied | Upgrade kit inlet separator with connections KF DN 25 with high chemical resistance |
