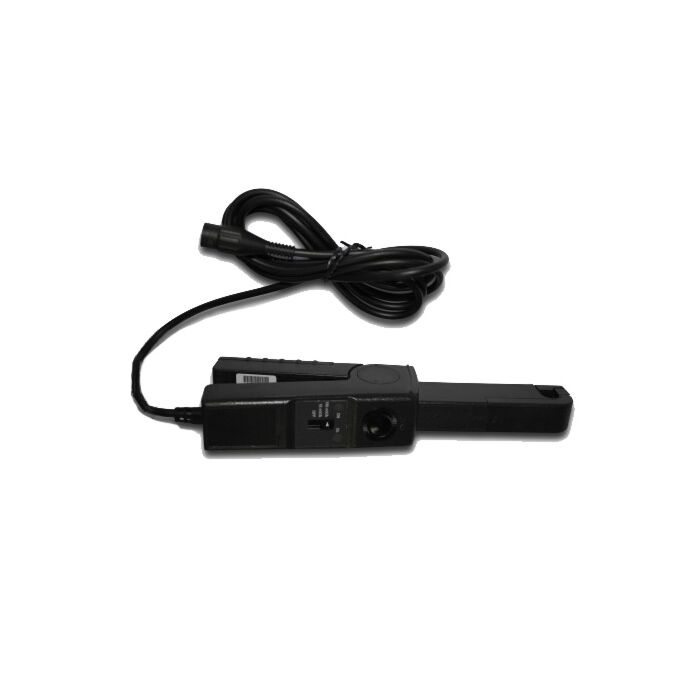

Siglent CP4020

Product Highlights

CP4000 Series probes adopt electromagnetic induction technology, to measure AC / DC current . They can measure from dozens of mA apeak to 200A, with the advantages of low phase . Besides, they can guarantee the accurate measurement of power voltage output (mV) effectively, Furthermore, they can measure cables, and be used in narrow spaces, because of the a narrow clamp design.

• Bandwidth: 100 KHz
• Maximum Continuous Current: 20 Arms
• Peak current: 60 A
• Switch Ratio: 50 mV/A, 5 mV/A
• Accuracy: 50 mV/A (0.4 A-10 Apk)±2%, 5 mV/A (1 A-60 Apk) ±2%
• 9 V battery source
