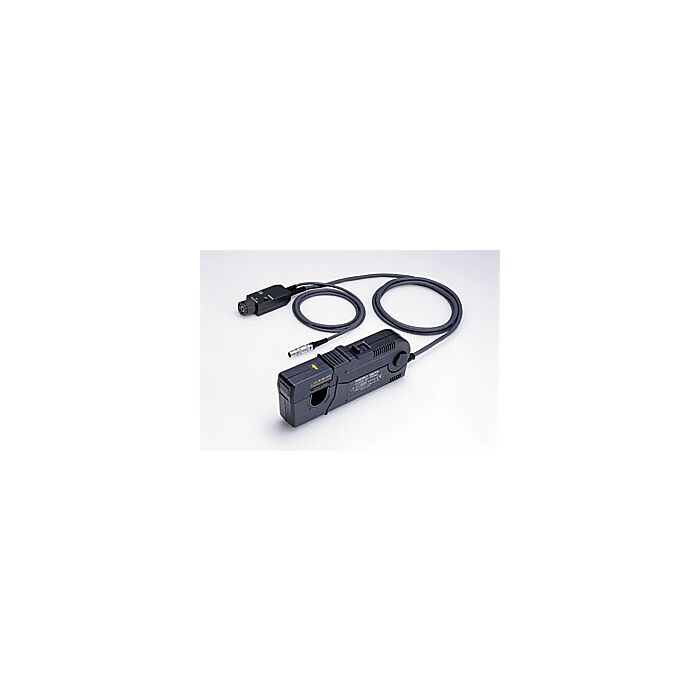

Hioki 3275 Current Probe - 2MHz ACDC

Hioki 3275 Current Probe - 2MHz ACDC

Order # 3275

Mfg # 3275

call-regular 800-828-1470
$6,769.00
  • Overview
  • Technical Resources

Hioki 3275 Current Probe - 2MHz ACDC

Order # 3275 | Mfg # 3275
$6,769.00

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Wide band: DC to 2 MHz
  • Maximum Input Range: 500 Arms (700 A peak when non-continuous)
  • Waveform monitoring from wide band and minute currents to large currents
  • Direct connection to BNC input of oscilloscope
  • Highly accurate current detection
  • Newly developed indium-antimony (InSb) thin-film Hall element
  • Simple overload protector prevents damage due to overheating
  • Easy measurement
  • Hard carrying case
  • Optional power supply unit 3272

Technical Resources

Hioki Clamp Sensor Series Datasheet
