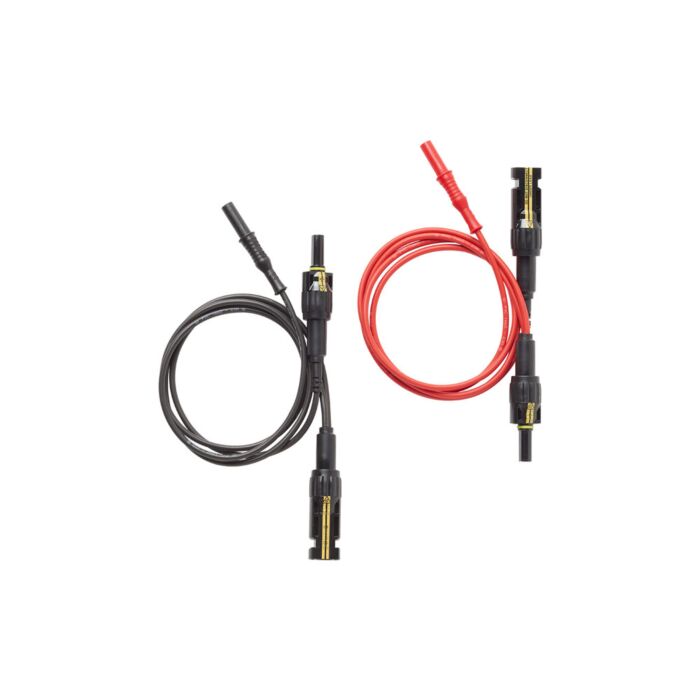

Pomona PVLEAD3
MC4 Solar Power Clamp Set
Order #: PVLEAD3
Mfg #: 5301195
Special Price
$116.18
Regular Price
$139.99
Availability: Ships in 3-4 weeks
Product Highlights
- Designed for use with solar clamp meters that accept 4mm banana plugs
- Ensures safe DC power measurements on Photovoltaic (PV) modules and systems
- Creates connection between solar panel and inverter for troubleshooting and maintenance of PV systems
- Complies to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031
The Pomona MC4 Solar Clamp Lead Set creates a connection between a solar panel and inverter for troubleshooting and maintenance of PV systems with compliance to CAT III 1000V / CAT IV 600V, 20A ratings in accordance to IEC / EN 61010-031.
Key Uses of Product
- Measure current and voltage on solar PV panels and systems
- Connect to clamp meters for test measurements
- Bypass connections between solar panels and inverters
- Troubleshooting and maintenance of PV systems
Each Unit Includes
- Set of black and red solar power clamp test leads
PVLEAD1 | PVLEAD3 | |
MC4 to 4mm Test Lead Set | MC4 Solar Clamp Meter Test Lead Set | |
Contact | Brass, Nickel Plated | Brass, Nickel Plated |
Length | 60" | 36", 12" |
Voltage | CAT III 1000V | CAT III 1000V |
CAT IV 600V | CAT IV 600V | |
Current | 20 amp | 20 amp |
Standards | IEC 61010-031 | IEC 61010-031 |
