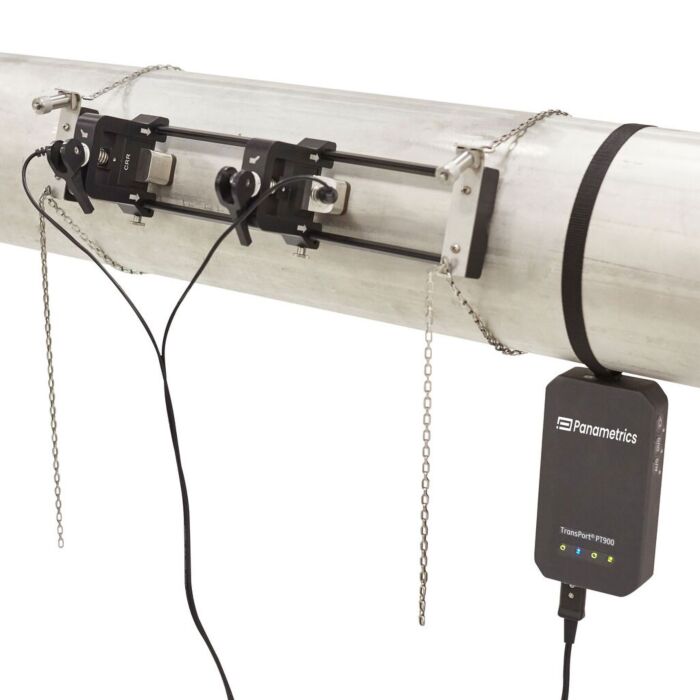

Panametrics PT900 for Rent, Portable Liquid Ultrasonic Flow meter, 1-Channel

Operation and Performance

Fluid Types

Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles

Flow Measurement

Patented Correlation Transit-TimeTM mode

Pipe Sizes

Standard: 0.5 to 24 in. (15 to 600 mm)

Optional: up to 300 in. (7500 mm) available upon request

Pipe Wall Thickness

Up to 3 in. (76.2 mm)

Pipe Material

All metals and most plastics

Accuracy

• ±1% of reading (2in/50mm or greater pipe sizes)
• ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)

Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors.

Repeatability

±0.2% of reading

Range (Bidirectional)

0.1 to 40 ft/s (0.03 to 12.19 m/s)

Response Time

Up to 2 Hz

Measurement Parameters

Velocity, Volume, Mass, Energy, Total Flow

Channels

1 or 2 channels

Flow Transmitter

Enclosure

IP65 rating

Specifications

• Weight: 3 lb (1.4 kg)
• Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm)
• Mounting: Soft strap around pipe or magnetic clamp

Analog Inputs

4-20 mA (qty 2)

Analog Output

4-20 mA (qty 1)

Digital Output

Pulse (Totalizer), Frequency, Alarm (qty 1)

Digital Communication

• Modbus via RS485 Port
• Bluetooth Wireless
• Micro-USB Port

Battery

• Type: Lithium Ion (high-energy, rechargeable)
• Life (continuous operation): 18-20 hours
• Life (power saver mode): >4 days
• Charger: 100 to 240 VAC (50/60/Hz)
• Charging Time: Up to 3 hours (from 0% to 100%)

Operating Temperature

-20 to 55°C (-4 to 131°F)

Electronics Classifications

• CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010
• ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1
• WEEE Compliant (Directive 2012/19/EU)
• RoHS Compliant (Directive 2002/95/EC)

User Interface

Display

Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution

Dimensions

• 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
• 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical

Battery Life

>12 hours of continuous use

Battery Charger

100 to 250 VAC (50/60 Hz)

Operating Temperature

0 to 50°C (32 to 122°F)

Communication with Flow Transmitter

Bluetooth

Software Application (PT900 APP)

Intuitive, Swipe Screen Interface

• Colorful, icon-driven design
• Tutorial-style programming
• Site parameter presets
• Multiple display options
• Extensive online help

Languages

English, Arabic, Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish

Installing the PT900 APP

Obtain the PT900 APP from:

• File provided on SD card
• Free download from Google Play
• Free download from GE website
