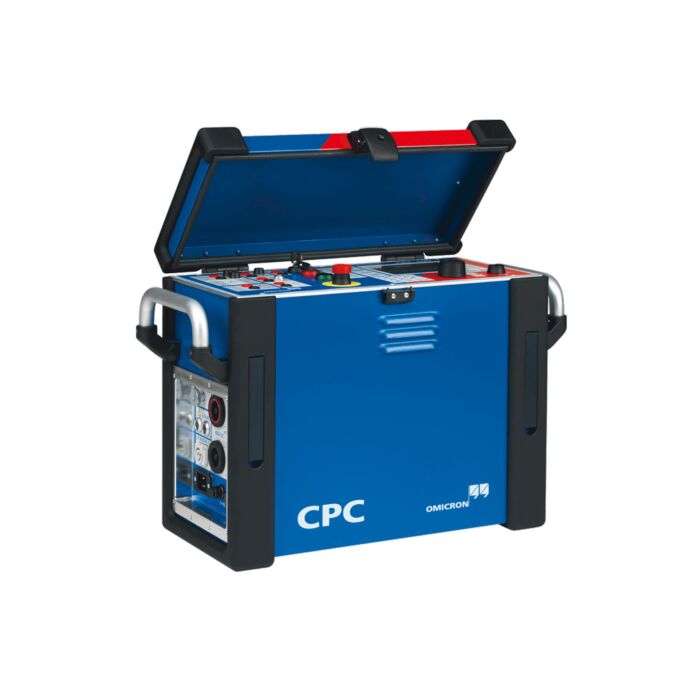

Omicron CPC 100 for Rent, Universal Primary Injection Test Set
Universal Primary Injection Test Set

Order #: CPC 100-RENT2

Mfg #: CPC 100-RENT2

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Omicron CPC 100 for Rent, Universal Primary Injection Test Set

Universal Primary Injection Test Set

Order #: CPC 100-RENT2

Mfg #: CPC 100-RENT2

Call for price

Request a Rental Quote

Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Call for price
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

The patented CPC 100 primary injection test system replaces several individual testing devices. This reduces the costs for training and transport, and cuts down testing time. Therefore, the CPC 100 is the ideal test set for substation asset commissioning and maintenance. You can operate the CPC 100 via the integrated front panel, or by using the Primary Test ManagerTM (PTM) software on your laptop.

Five reasons to get CPC 100

High level of safety: To protect you and your equipment, the CPC 100 fulfills the highest safety requirements when performing electrical tests according to IEEE and IEC standards.

Saves you time: The CPC 100 provides you with automated testing procedures and reporting to help you to work quickly and more efficiently.

Compact and lightweight: The compact, lightweight design (29 kg / 64 lbs) makes the CPC 100 easy for one person to transport and ideal for on-site testing in areas with limited space.

Powerful device: The powerful testing device provides up to 800 A or 2 kV (2 kA or 12 kV/ 15kV with boosters) with up to 5 kVA over a frequency range of 15 Hz to 400 Hz or 400 ADC.

Variable frequency: CPC 100 uses test frequencies different from the mains frequency offering an effective suppression of mains-related interference. Thus you obtain very accurate results even in noisy environments.

CPC Sync: The CPC Sync feature 'provides the opportunity to synchronize up to three CPC100 testing systems. It can be used as a mobile and scalable HV source for on-site induced voltage tests on dry-type transformers (DTT) and gas-insulated switchgears.

Multiple ways to operate: To meet your personal preferences, the CPC 100 offers different operating modes for you to choose from. You can use the CPC 100 front panel for quick results and maximum flexibility or benefit from the guided test workflow, data management and automatic assessment using the Primary Test Manager™ (PTM) on a laptop or tablet. The PTMate app is our mobile companion for PTM and supports you on site by providing additional features on your smartphone.

Features

  • Up to 800 A or 2000 V with up to 5 kVA over a frequency range of 15 Hz - 400 Hz or 400 A DC
  • Excellent interference suppression facilitates measurement of small signals
  • Easy to transport (just 29 kg) - ideal for on-site testing
  • Testing templates, automatically generated testing procedures and test reports
  • Up to 2000 A or 12 kV/ 15kV through use of current or voltage amplifiers

Applications

  • Current transformers (CT)
  • Voltage transformers (VT)
  • Transformers
  • Rotating machines
  • Grounding systems
  • Lines and cables
  • Circuit breakers
