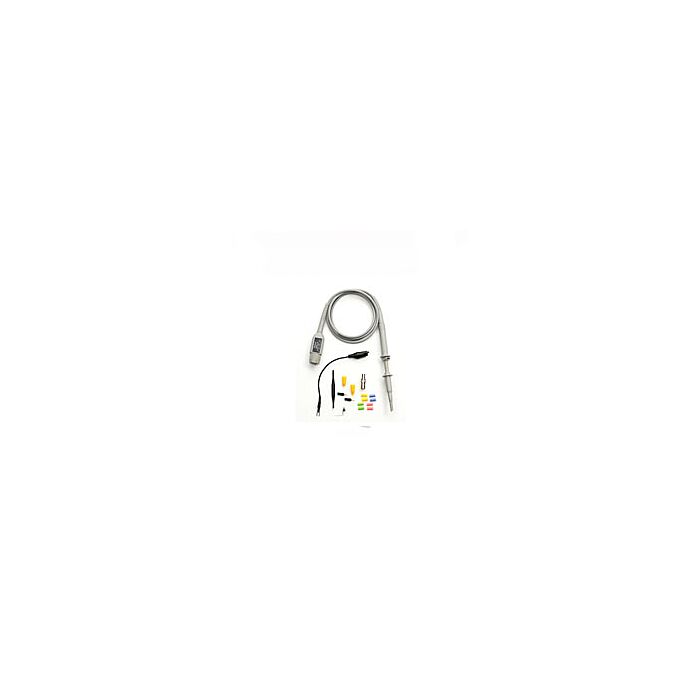

Keysight N2843A Passive Probe, 500MHz, 10:1
Passive Probe,500MHz,10:1

Order #: N2843A

Mfg #: N2843A

Questions about availability or need help? Contact Us:

(800) 633-0561
$393.00

Keysight N2843A Passive Probe, 500MHz, 10:1

Passive Probe,500MHz,10:1

Order #: N2843A

Mfg #: N2843A

$393.00
The Keysight N2843A low-cost passive probe provides a 10:1 attenuation and features a high input resistance of 10 MΩ. The probe can be adjusted for low-frequency compensation and high-frequency compensation. For the best measurements you should compensate your probe to match its characteristics to the oscilloscope.
Availability: Ships in 4-6 weeks
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Product Highlights

  • Bandwidth DC to 500 MHz
  • Cable length 1.2 m
  • Rise time 700 ps
  • Attenuation ratio 10:1
  • Input resistance 10 MΩ (when terminated into 1 MΩ)
  • Maximum input 300 V RMS (or >400Vpk) CAT I and CAT II
  • Compatible with Keysight InfiniiVision and Infiniium Series oscilloscopes with 1 MΩ input
  • Probe ID
