Monarch Instrument 6205-052

Product Highlights

• PALM STROBE x has a removable, re-chargeable battery pack.
• Unique joy-stick tuning button for single hand operation
• Light weight
• Flash rates to 12,500 FPM
• Tachometer mode from remote sensors
• TTL compatible input/output
• N.I.S.T. Calibration included
• Display 6 digit alphanumeric backlit LCD
• Light Power 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
• Flash Duration 10 - 30 µseconds typical
• Flash Lamp Life 100 million flashes typical
• Range: 5 - 250,000 RPM
• Accuracy: ± 0.01% or 0.1 RPM
• Updatete Rate: 1 second typical
• External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered
• Run Time 2 hour typical at 1800 FPM with fully charged batteries.
• Adjustment Four Quadrant Pressure Sensitive Joystick Button adjusts flash rate, x2 and ÷2
• Output Pulse 250 µsec positive pulse, 5 Vdc typical
• Power Removable NiMH Rechargeable Battery Pack with integral charge control electronics
• Weight 1.2 lbs (0.55 kg) including battery
• Strobe Dimensions 3.04 x 9.34" (77 x 237mm)

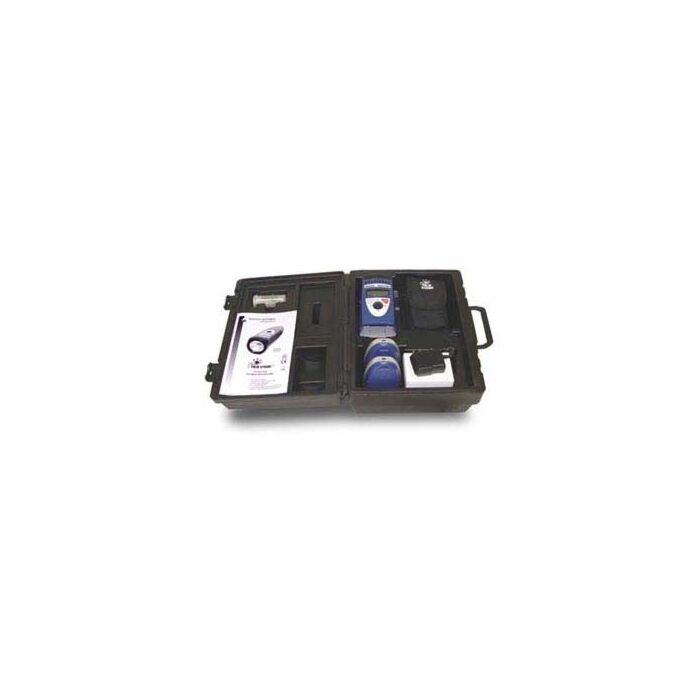

Each Unit Includes

• Palm Strobe x
• Battery
• PSC-2U 115/230 Vac Recharger
• Spare Lamps
• Latching Carrying Case
