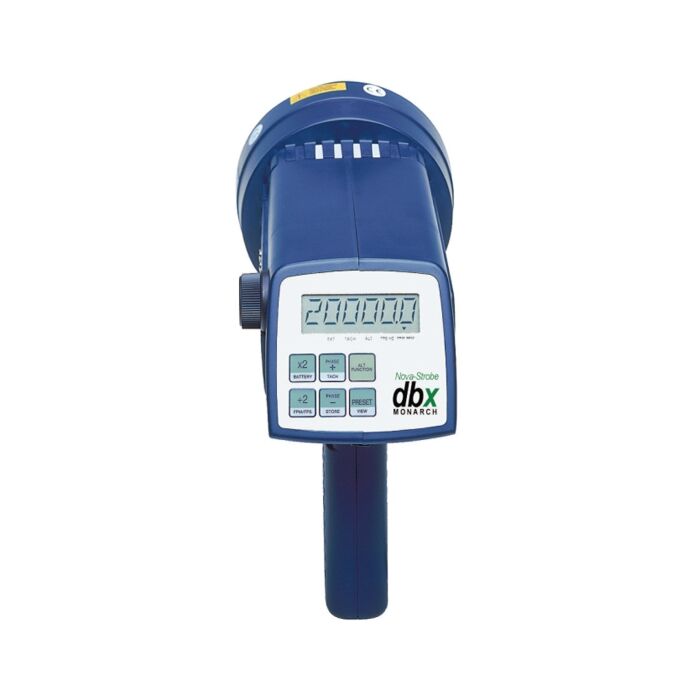

Monarch Instrument NOVA-STROBE DAX KIT 230
Nova-Strobe DBX Kit,230VAC

Order #: 99208TS

Mfg #: 6204-013

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,148.00

Monarch Instrument NOVA-STROBE DAX KIT 230

Nova-Strobe DBX Kit,230VAC

Order #: 99208TS

Mfg #: 6204-013

$1,148.00
Availability:
In stock

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • 20% brighter than previous models - advanced switching power supplies run cool
  • Battery models weigh less than 2lbs and run twice as long
  • All models are RoHS compliant (lead free)
  • Flash rates from 30 to 20,000 flashes per minute, adjustable in 0.1 step increments, the coarse/fine adjustment knob makes it quick and easy to set the exact flash rate you want
  • Digital controlled microprocessor keeps readings rock steady
  • Internal phase shifting allows the target to be jogged clockwise or counter clockwise in 5° increments
  • Times 2 and divide by 2 push buttons allow easy checking for actual RPM, harmonics and allow stop motion far beyond the 14,000 fpm limit
  • Store and recall up to 6 user selectable values
  • Last measurement memory, even with the power off
  • Flash rate may be displayed in Flashes per Minute (RPM) or Flashes per Second (Hz)
  • Individual input and output TTL jacks (1/8 inch phone) provides power to remotes sensors and allows "daisy-chaining" of multiple strobes
  • Power is provided for external sensors
  • Tachometer mode allows accurate speed measurement up to 250,000 RPM using external sensors
  • Tripod mounting bushing in handle

Each Unit Includes

  • N.I.S.T. Certificate of Calibration
  • Spare Lamp
  • Latching Carrying Case
  • Universal recharger (90 - 240 Vac)
Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
  1. Monarch Instrument 6180-057
    Monarch Instrument 6180-057
    ROS-P Remote Optical Sensor

    Order #: 5283FST

    Mfg #: 6180-057

    Availability:
    In stock
    $242.20
  2. Monarch Instrument CC-7
    Monarch Instrument CC-7
    Plastic Latching Carrying Case

    Order #: 4432FST

    Mfg #: 6280-040

    Availability: Ships in 3-4 weeks
    $119.00
Flash rate range30 to 20,000 FPM
Tachometer range5 to 250,000 RPM, + or - 0.001% of reading
Flash rate unitsFPM, Hz
Flash rate resolution0.01 to 1 FPM (menu selectable), 0.1 FPM max resolution above 9,999.99 FPM
Flash rate accuracy0.004% of setting, or + or - last digit
Tachometer accuracy+ or - 0.001% of reading, or + or - last digit
Trigger inputTTL (1/8" phone jack), 24V max, provides 5V out
FlashtubeXenon
Flash duration10 to 25 microseconds/230mJoules
Power supply6V DC internal rechargeable battery with PSC-2U (115/230 V AC) Universal Recharger and USA, U.K., AUS, and Euro Adapter Plugs
DimensionsBody: 3.66 x 3.56 x 9"/93 x 90 x 229mm
Reflector housing: 4.8"/122mm diameter
Handle: 4.35"/108mm
Weight1.9lb
