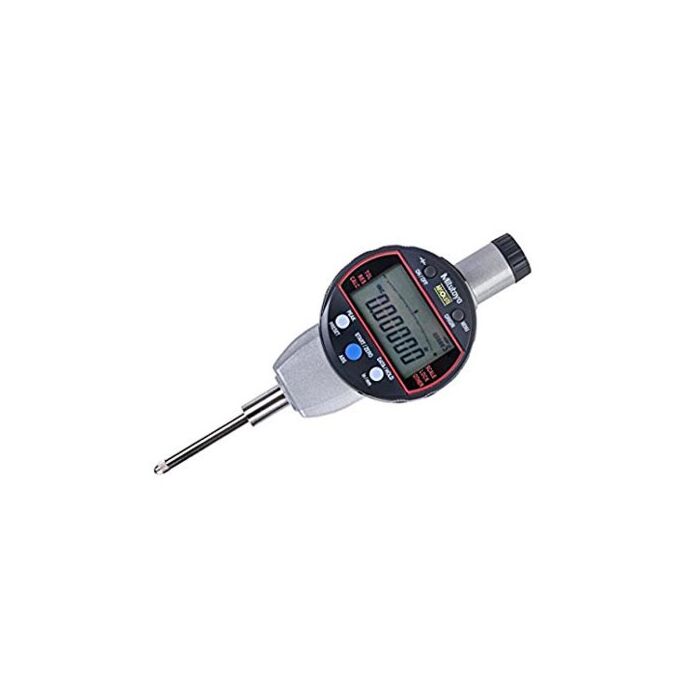

Mitutoyo 543-592B

Product Highlights

• The new Calculation-Type Digimatic Indicator features both a Key- Lock and Parameter-Lock to prevent accidental changing of settings during operation.
• Improved parameter setting software makes easy to set all available parameters, and determine and upload the proper coefficients for calculation. (optional)
• Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50, allowing higher accuracy measurements of TIR and MAX/MIN.
• An analog bar provides easy-to-read values when scanning for Max, Min, and TIR Values.
• The Absolute Digimatic indicator performs internal calculations using the formula Ax+B+Cx-1 (assuming spindle displacement as x) while the specified coefficients A, B and C can be set with respect to the purpose of measurement or dimensions of the fixtures. This unique features allows you to read your measurements directly, without the need for conversions.
• Resolution .00001-.05in 0.0002-1mm
• Range 1in 25.4mm
• Accuracy .00012in
• Measuring Force 2.0N or less
• Type ANSI/AGD type Stem dia 3/8 in 4-48 UNF Thread
