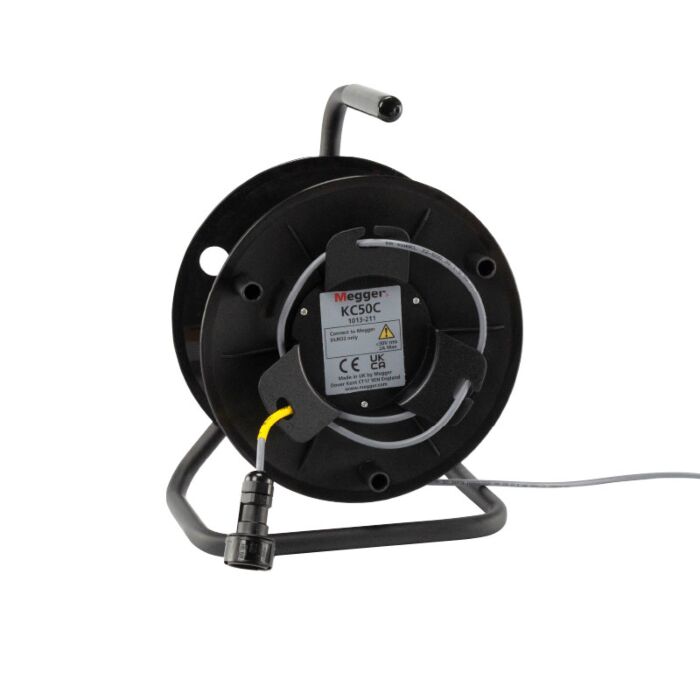

Megger KC50C-KIT Kelvin clip/probe reel (50m+3m)

Product Highlights

KC50C-KIT Kelvin clip/probe reel kit (50m+3m) 1Ω resistance, for use with DLRO2, wind turbine, airframe etc. applications

KC-C series long test leads Wind turbine lightning protection low current test lead sets (2 A)

• Cable reel lead 164 ft
• Short test lead 9.8 ft
• Test cable diameter 1/4 inch
• Kelvin probe distance between tips 0.19 inch
• Kelvin probe tips are spring loaded, hardened, sharp, gold plated
• Kelvin clamp jaw capacity 1.38 inch
• Right angled shrouded instrument test terminations black and red 0.15 inch

• Designed to work with DLRO2 series
• Unique lightweight and versatile design ideal for difficult testing tasks
• Cable reels in two lengths KC100C (328 ft) and KC50C (164 ft)
• NEW 50 m extension (KC50E) allows up to 656 ft testing with the DLRO2 long test lead mode
• Allows easy and reliable measurement of lightning protection circuit resistance of tall structures
• Easy to use click-to-lock connectors rated IP68
• Ideal for testing low resistance on wind turbines, railways and long cables

The new KC-C test leads are updated versions of the popular KC series test leads that now take advantage of the long test lead mode on the new DLRO2. The DLRO2s ability to test with up to 3.2 Ω total resistance at 1 A means the new KC-C series of leads can be much smaller and lighter, a distinct safety enhancement when working at heights associated with wind turbine towers. The new KC100C cable reel weighs in at a low 16.8 lb, compared to the nearly 33 lb weight of the KC100 cable reel.
