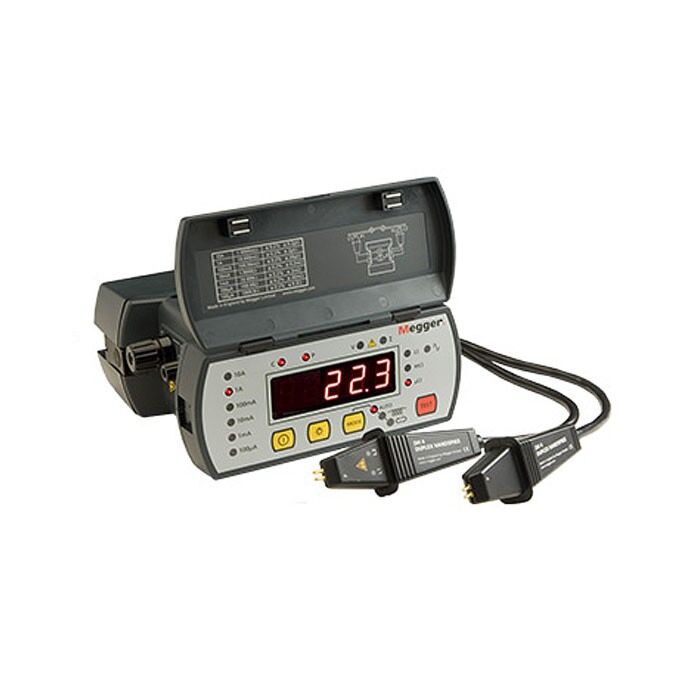

Megger DLRO10 Digital Low Resistance OhmMeter

Product Highlights

The DLRO10 and DLRO10X digital low resistance micro-ohmmeters bring new standards to low resistance measurement (also known as the Megger 'Ducter' test). Both are fully automatic instruments, selecting the most suitable test current, up to 10 A DC, to measure resistance from 0.1 µΩ to 2000 Ω on one of seven ranges.

If you desire more control over the measurement process, the DLRO10X uses a menu system controlled by a two-axis paddle to allow you to manually select the test current.

The DLRO10 uses a large, bright 4.5-digit LED display, while the DLRO10X has a large, backlit LCD. Both are visible under all lighting conditions and help reduce errors in reading results.

Both instruments are built into a strong, lightweight case that is equally at home in the field or the laboratory. They are light enough to be worn around the neck, enabling you to take them into areas that were previously too small to access.

• Accurate results in under 3 seconds
• Designed for the rigors of onsite testing and laboratory use
• Four-wire measurement technique cancels out lead resistance
• Auto current reversal cancels standing emfs
• Continuous not pulsed current
• Fuse protected to 600V
• NiMH battery reduces weight
• Automatically detects continuity in potential and current connections
• Visible warning of high voltages present at the terminals
• Visible warning of current flowing in the test sample
• 5 operating modes including fully automatic

Each Unit Includes

• NiMH battery module
• Two duplex handspikes 1.2m/4 ft,one with indicator lights
• Battery charger for operation from 115/230V/ 50/60 Hz
• Cigar lighter adapter for battery charging
• User guide
• Warranty manual
