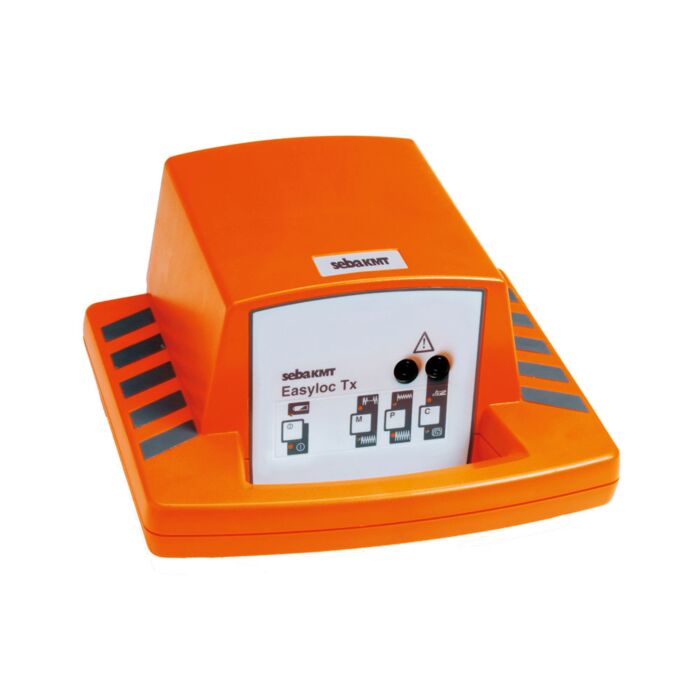

Megger 890005586 Easyloc TX 33 Hz Transmitter Set, grounding set, w/o bag

Megger 890005586 Easyloc TX, 33 Hz ,Transmitter Set, grounding set, without bag

Order # 890005586

Mfg # 890005586

call-regular 800-828-1470
$2,394.00
  • Overview
  • Technical Resources
  • Specifications
  • Accessories

Megger 890005586 Easyloc TX, 33 Hz ,Transmitter Set, grounding set, without bag

Order # 890005586 | Mfg # 890005586
$2,394.00

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Megger Easyloc TX Transmitter - 33 Hz Transmitter Set, with Grounding Set

  • Semi-automatic sensitivity control
  • Depth measurement, even without transmitter
  • Compatible with other location systems
  • High-performance transmitter

The Easyloc is fast and simple to operate, with features de-signed to avoid potentially dangerous power cables and other services as efficiently as possible. The Easyloc receiver shows the signal level received and marks the maximum with a marker. This means operators work with both an audio signal and visual confirmation at all times. Depth measurement is possible at the push of a button, even when using the power mode, but only with Easyloc Standard. Easyloc is suitable for water, rail, gas, power, highways and telecommunication utilities, as well as contractors, ground-works, building, local authorities, civil engineering, street lighting and fencing, gardening and landscaping companies.

Advantages Easyloc:

  • Avoid cable damage and minimize costly accidents and inconvenient delays
  • Quick and simple to operate
  • Transmitter with mains voltage-proof output - no separating filter necessary
  • Depth measurement at the push of a button, even with-out a transmitter
  • Make optimum preparations for your building work, quickly and reliably
  • Semi-automatic sensitivity control
  • Depth measurement, even without transmitter
  • Compatible with other location systems
  • High-performance transmitter
  • Big display with easy menu structure and automatic backlight

Technical Resources

Specifications

Transmitter TX (all versions)
Operating time > 40 hours
Power supply 6 x IEC R20 1.5 V (D)
Working / storage temperature - 20° C ... + 55° C / - 40° C ... + 70° C
Weight 2.6 kg
Dimensions (W x H x D) 26 x 25,5 x 14 cm
Protection class IP 54
Loading...

Megger 890005586 Easyloc TX, 33 Hz ,Transmitter Set, grounding set, without bag Accessories

checkbox-empty
checkbox-checked
Megger 890004303 Grounding set: Earth stake & reel, 10 m; clips, 1.5 m cable, bag
checkbox-empty
checkbox-checked
Megger 890008650 Headphones for Easyloc System
checkbox-empty
checkbox-checked
Megger 890008854 House connection set
