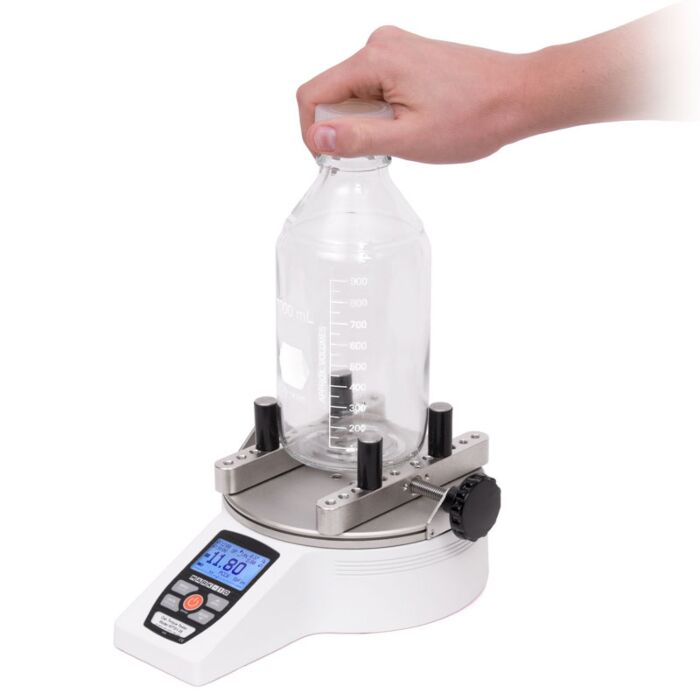

Mark-10 MTT01-25 for Rent, Digital Cap Torque Tester, 25 lb/in
Order #: MTT01-25-RENT1
Mfg #: MTT01-25
Product Highlights
Cap torque tester, 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm
Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.
Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.
The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.
Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
- Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
- Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
- Password protection prevents unauthorized changes
- High-speed 7,000 Hz sampling rate accurately captures peak torque values
- 5 selectable units of measurement
- USB, RS-232, Mitutoyo, and analog outputs
- 1,000-point data memory with statistics and outputs
- Programmable set point indicators and outputs for pass/ fail determination
- Configurable audio alarms and key tones
- MESUR Lite data collection software included
| Try Before You Buy | |
| Save Time & Money | |
| Weekly and Monthly Rentals | |
| Access Our Large Inventory | |
| Long-term Discounts and Rent-to-Buy Options Available |
| Accuracy: | ±0.3% of full scale | |
| Sampling rate: | 7,000 Hz | |
| Bottle diameter range: | Ø0.5 - 7.5 in [12.7 - 189.4 mm] With CT001 optional jaws: Ø0 - 5.9 in [0 - 149.9 mm] With CT003 optional jaws: Ø0 - 4.6 in [116.8 mm] |
|
| Power: | AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low. | |
| Battery life: | Backlight on:up to 7 hours of continuous use Backlight off:up to 24 hours of continuous use |
|
| Measurement units: | ozFin, lbFin, kgFcm, Nm, Ncm | |
| Output: | USB / RS-232:Configurable up to 115,200 baud. Mitutoyo (Digimatic):Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog:±1 VDC, ±0.25% of full scale at capacity, General purpose:Three open drain outputs, one input. Set points: Three open drain lines. |
|
| Configurable settings: | Digital filters, outputs, automatic output/data storage/zero, automatic shutoff, default settings, key tones, backlight, audio alarms, passwords, calibration | |
| Safe overload: | 150% of full scale (display shows "OVER" at 110% and above) | |
| Weight: | 8.4 lb [3.8 kg] | |
| Environmental requirements: | 40°F - 100°F [5°C - 45°C], < 96% humidity (non-condensing) | |
| Warranty: | 3 years (see individual statement for further details) | |
| HS code: | Model no. | HS code: |
| MTT01 (all capacities) | 9024100000 | |
| CERT CT001,2,3,4,5,6,7 AC1036 AC1077 15-1004 09-1165 09-1163 08-1026 AC1030 AC1031 AC1032 AC1035 |
9024800000 | |
| ECCN: | EAR99 | |
| Country of origin: | USA | |
