MadgeTech RFCO2RHTEMP2000A
Order #: RFCO2RHTEMP2000A
Mfg #: 901391-00
Product Highlights

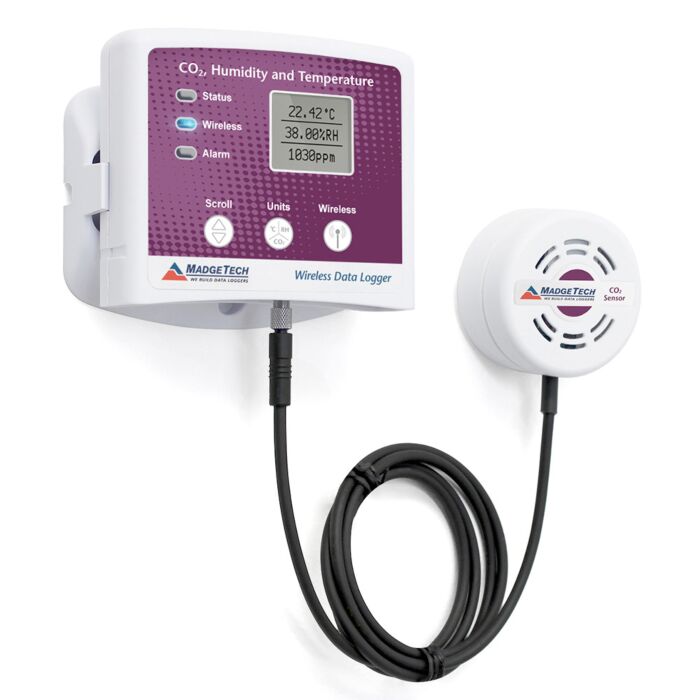

Wireless CO2, Humidity and Temperature Data Logger with LCD and remote sensor
The RFCO2RHTemp2000A is a wireless CO2, humidity and temperature data logger. Includes standard calibration certificate.
- Digital Display
- Continuous Monitoring
- Configurable Alarms & Notifications
The RFCO2RHTemp2000A is a wireless data logger that measures and records carbon dioxide, humidity and temperature. It's the all-in-one solution for acquiring a complete environmental profile.
The RFCO2RHTemp2000A comes with a 16 ft. cable connected to the CO2 sensor, making it ideal for placement within enclosed environments. This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFCO2RHTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.
The RFCO2RHTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
The RFCO2RHTemp2000A is MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.
| Memory | 10,752 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| LED Indicators | Green, Blue & Red |
| Battery Life | 16 months typical at a 10 minute reading rate |
| Material | ABS plastic |
| Dimensions | Data logger: 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) Sensor: 1.98 in x 1.98 in x 1.15 in (50.3 mm x 50.3 mm x 29.2 mm) Cable Length: 16 ft (192 in) |
| IP Rating | IP22 |
| Operating Environment | 0 °C to +55 °C (+32 °F to +131 °F), 0 %RH to 95 %RH, 13.77 PSIA to 100 PSIA |
| Required Interface Package | RFC1000 |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Internal Channel Temperature Sensor | Silicon |
| Internal Channel Temperature Range | 0 °C to +55 °C (+32 °F to +131 °F) |
| Internal Channel Temperature Resolution | 0.08 °C (0.144 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±1.0 °C |
| Humidity Sensor | Silicon |
| Humidity Range | 0 %RH to 95 %RH |
| Humidity Resolution | 0.08 %RH |
| Humidity Calibrated Accuracy | ±3.0 %RH from 25 %RH to 75 %RH @ 25 °C, 7 %RH otherwise |
| Carbon Dioxide Range | 0 ppm to 200,000 ppm |
| Carbon Dioxide Resolution | 10 ppm |
| Carbon Dioxide Accuracy | 70 ppm ± 5% of the reading |
| RF Baud Rate | 250,000 |
| Output Power | +0 dBm typical |
| Receiver Sensitivity | -95 dBm typical |
| Typical outdoors Line of sight | Up to 2000 ft |
| Typical Indoors line of sight | Up to 500 ft |
